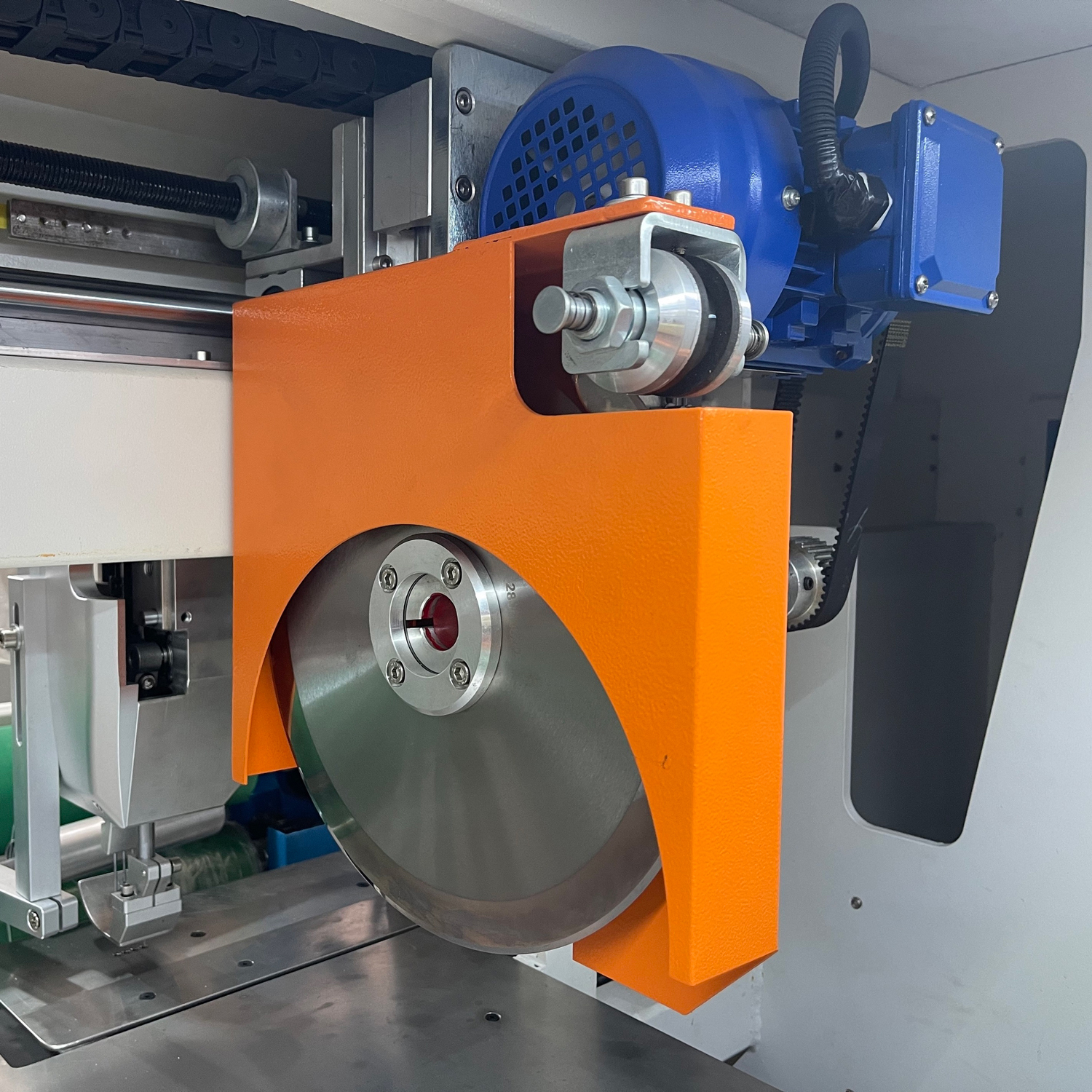

Industry's first: Add sealing edge function, non shuttle working,out put fabric with over lock two sides
Equip with DURKOPP sewing head, to increase operate speed, the maximum speed up to 3000rpm.

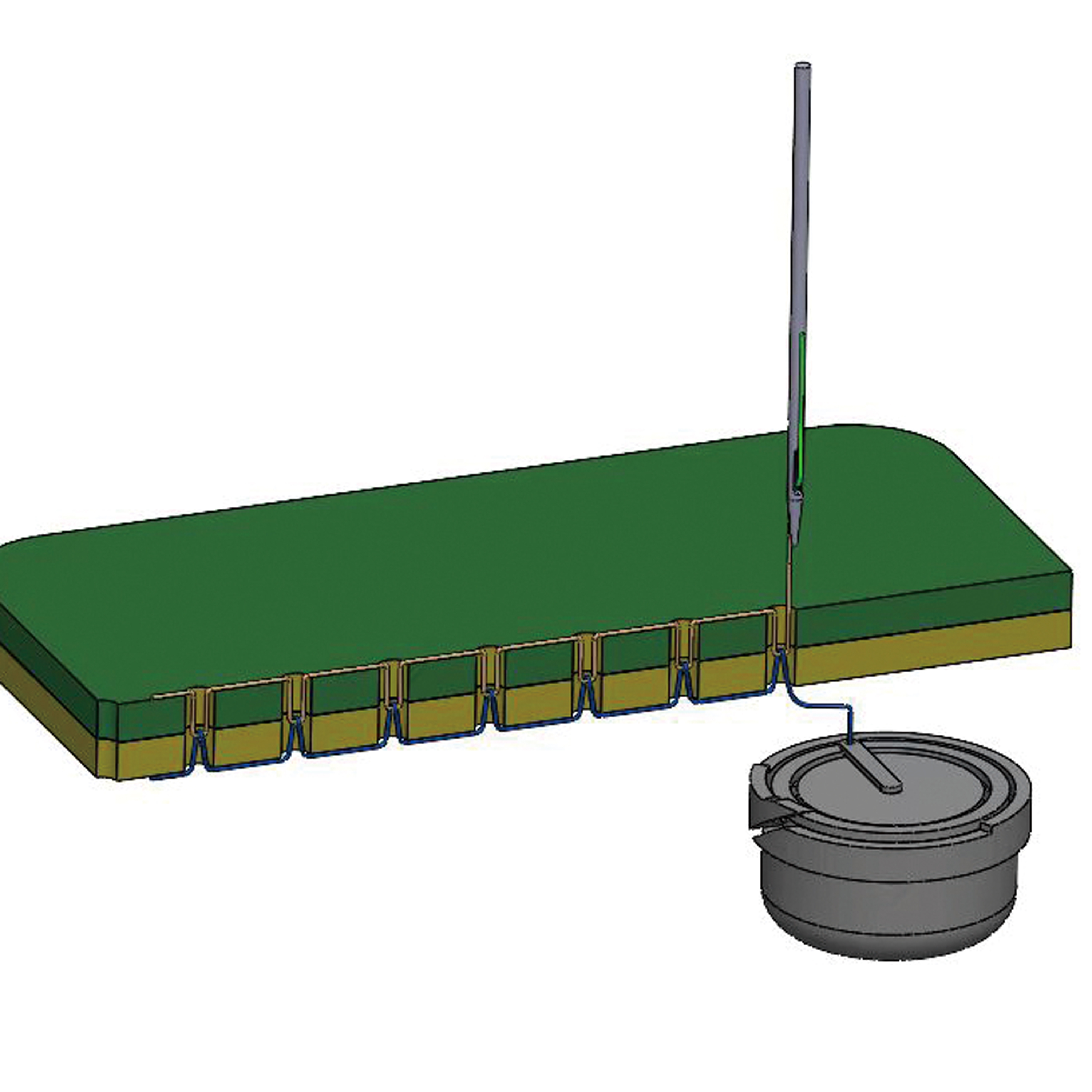

Adopt imported large rotary hook,arbitrary jump quilting, automatic thread breaking detection, Patterncompensation available at any point by touch screen.
Presser foot can be adjusted according to material thickness.
Using a professional customized industrial computer system, it can accurately quilt various complex patterns
360°
Able to quilt 360°jump design ,With large memory, able to store more than 100 thousand of patterns.
|
Max quilting width |
≤2400 mm |
|
Max rotating speed of needle |
3000 rpm |
|
Max quilting thickness |
≤80 mm |
|
Capacity |
70-200 m/h |
|
Stitch length |
2-6 mm |
|
Gross weight |
3200 KG |
|
Total power |
9 KW |
|
Voltage |
380V/50Hz 220V/60Hz, 3-Phase |
|

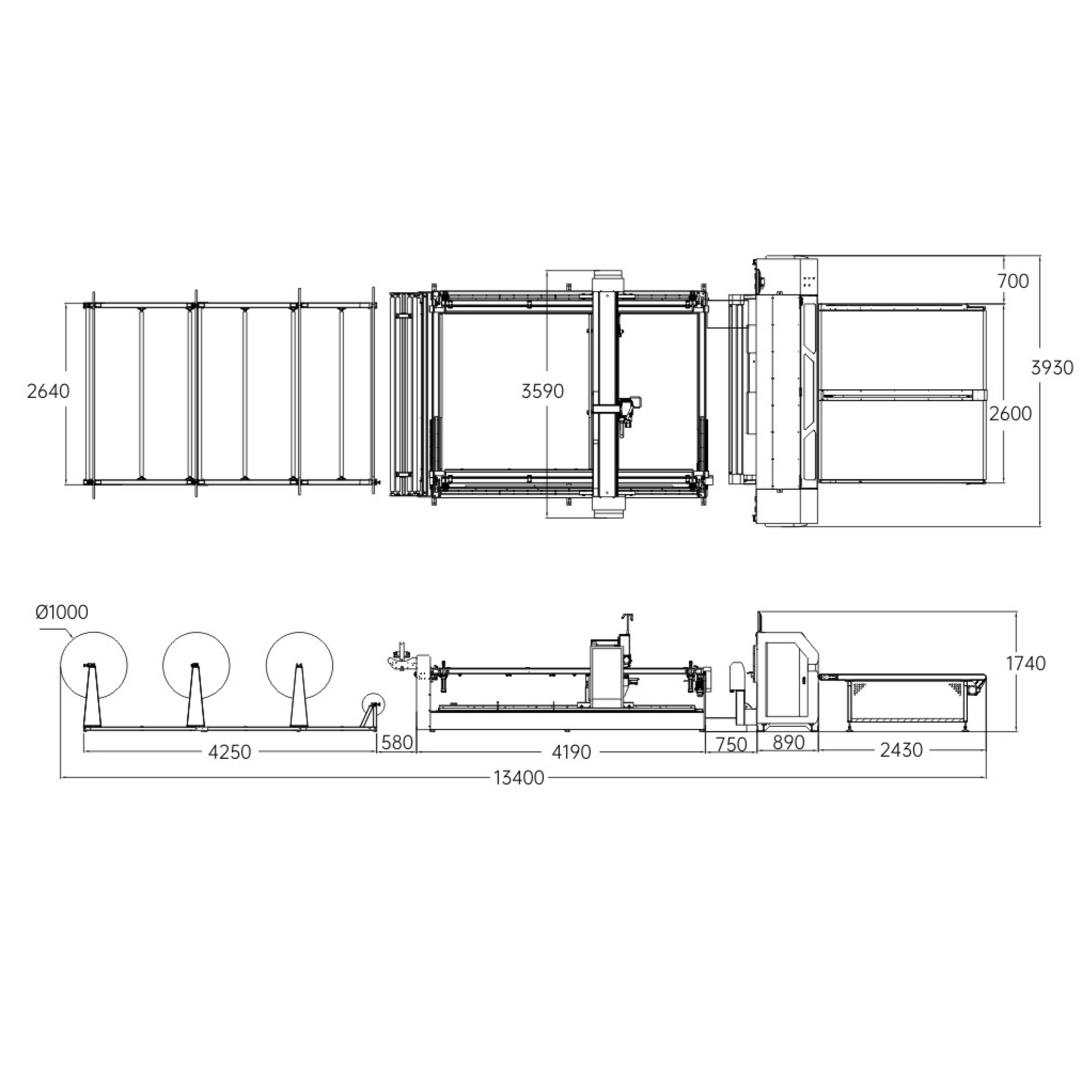

Dimension (L×W×H) |
13400×3930×1740 mm |
Production and assembly of mattress spring equipment and automatic mattress spring bed net production line
In good order Mattress spring equipment for assembly is being produced
In good order Mattress spring equipment for assembly is being produced
It is mainly used for the production and assembly of mattress pocket spring bed net production line
It is mainly used for the production and assembly of Conjoined Coiling Machine.
It is mainly used for the production and assembly of Mattress Spring Assembling Machine.
Most of the parts of the mattress machine are processed through this workshop before entering the assembly link
Mattress machine parts storage warehouse, the production of good machines will be stored in this warehouse
Mattress machine parts storage warehouse, the production of good machines will be stored in this warehouse
On the second floor of the factory, there are various offices, reception rooms, accessories sales office and innovation research and development office
On the second floor of the factory, there are various offices, reception rooms, accessories sales office and innovation research and development office
The main function is to develop new (innovative) mattress equipment products and optimize the technical support of existing mattress equipment products under the leadership of the senior team according to the development strategy of the factory.
Good idea
Customer provides the mattress factory area and daily output, and we help to work out the plan
Developed & Produced
Carry out R&D and production assembly according to the mattress production line plan
Machine details and freight charges
We will make a professional report, which includes the detailed parameters of the machine, the quotation and the approximate amount of freight, which will be changed according to the customer's demand.
Machine advantages and comparison
We will provide machine pictures and videos, you can watch the machine operation through video chat at any time, so that customers can better observe.
We will inform customers of the advantages of our machines and the comparison with peers, so that customers can make better choices, rather than blindly promote.
Machine progress and report
We can report the machine production progress for customers at any time, take photos and video, and also directly video chat.
Technical support and training
The sales service team will provide customers with technical support and training. Whether it is the installation, commissioning or daily use of the product, the sales service team will respond in time and provide solutions. At the same time, the in-sales service team will also provide relevant training for customers to help them better use and maintain the products.
Video of machine spring parameters
When the machine is ready to adjust the parameters, we will shoot a video and send it to the customer with subtitles. We will also send the machine instructions.
The equipment or production line will be shipped after customer inspection and satisfaction.24H Online Service.
