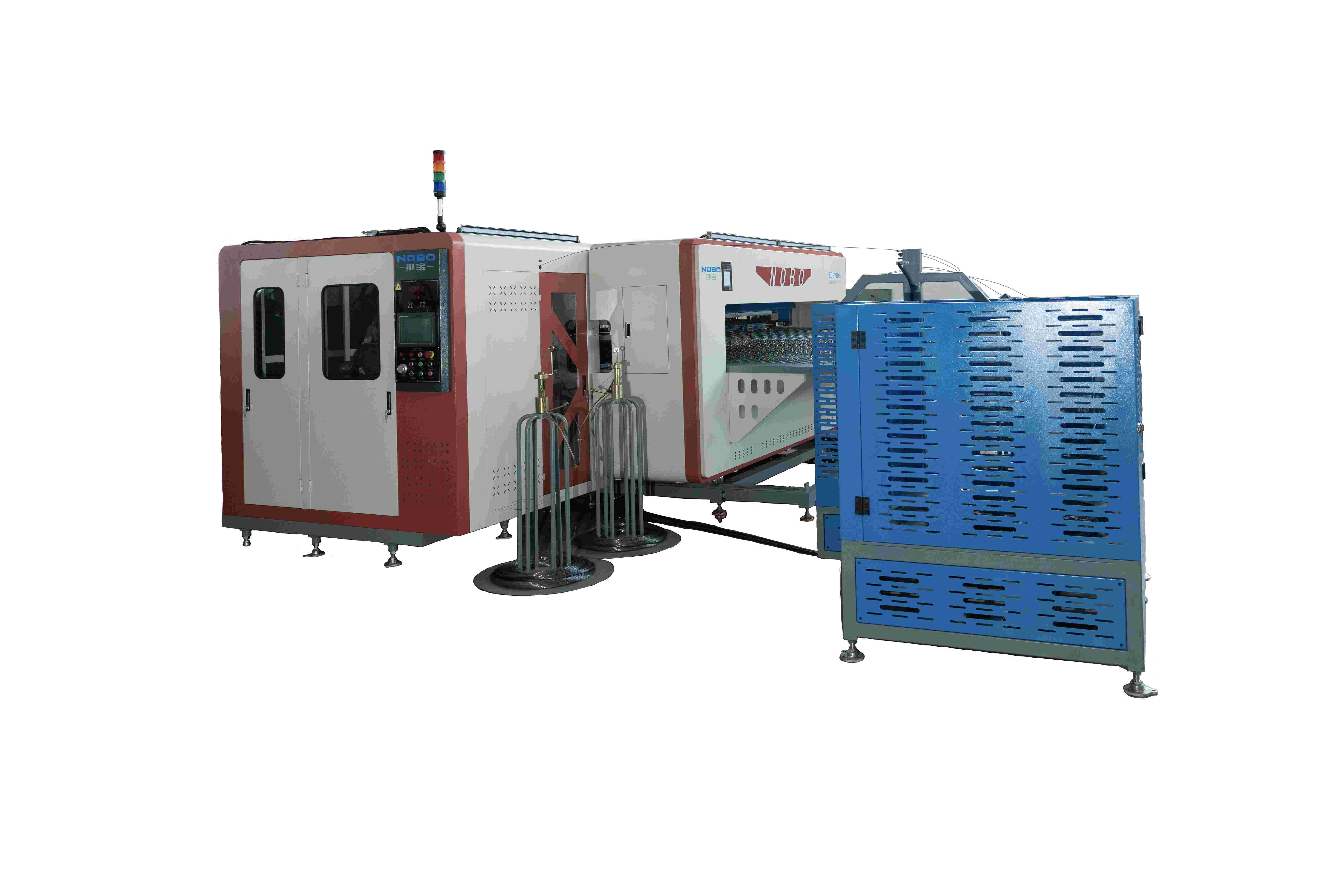

Revolutionizing Mattress Production: The CNC Side Push Spring Mattress Bed Net Production Line
Introduction

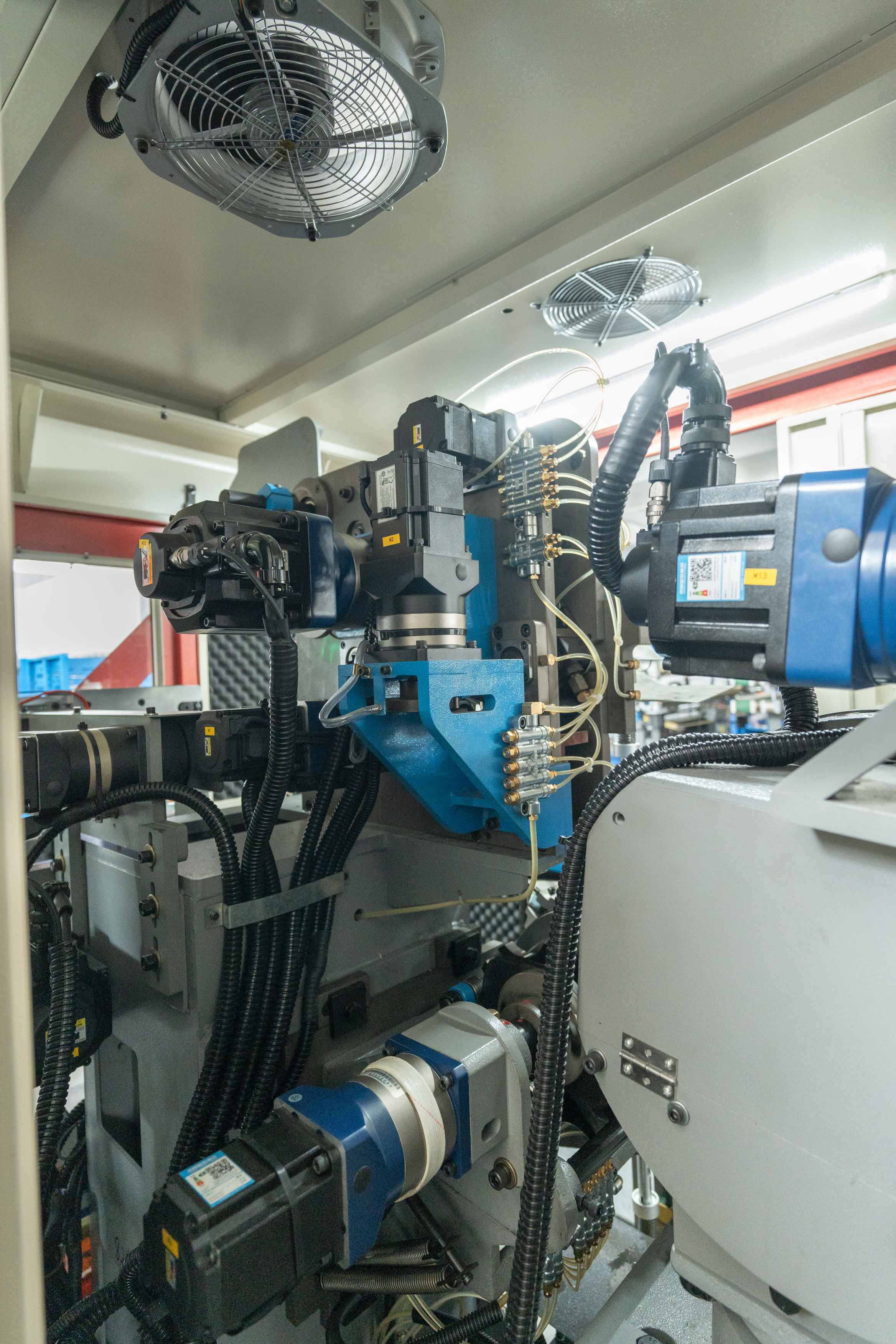

The CNC Side Push Spring Mattress Bed Net Production Line (Model NOBO-ZD-100S) represents a technological leap in mattress manufacturing. Engineered for precision and efficiency, this fully automated system transforms raw wire into finished Bonell spring bed nets with minimal human intervention. Leveraging advanced Semi EtherCAT Servo Control technology, it eliminates traditional mechanical cam systems, offering unprecedented flexibility for modern mattress production facilities.
Core Capabilities

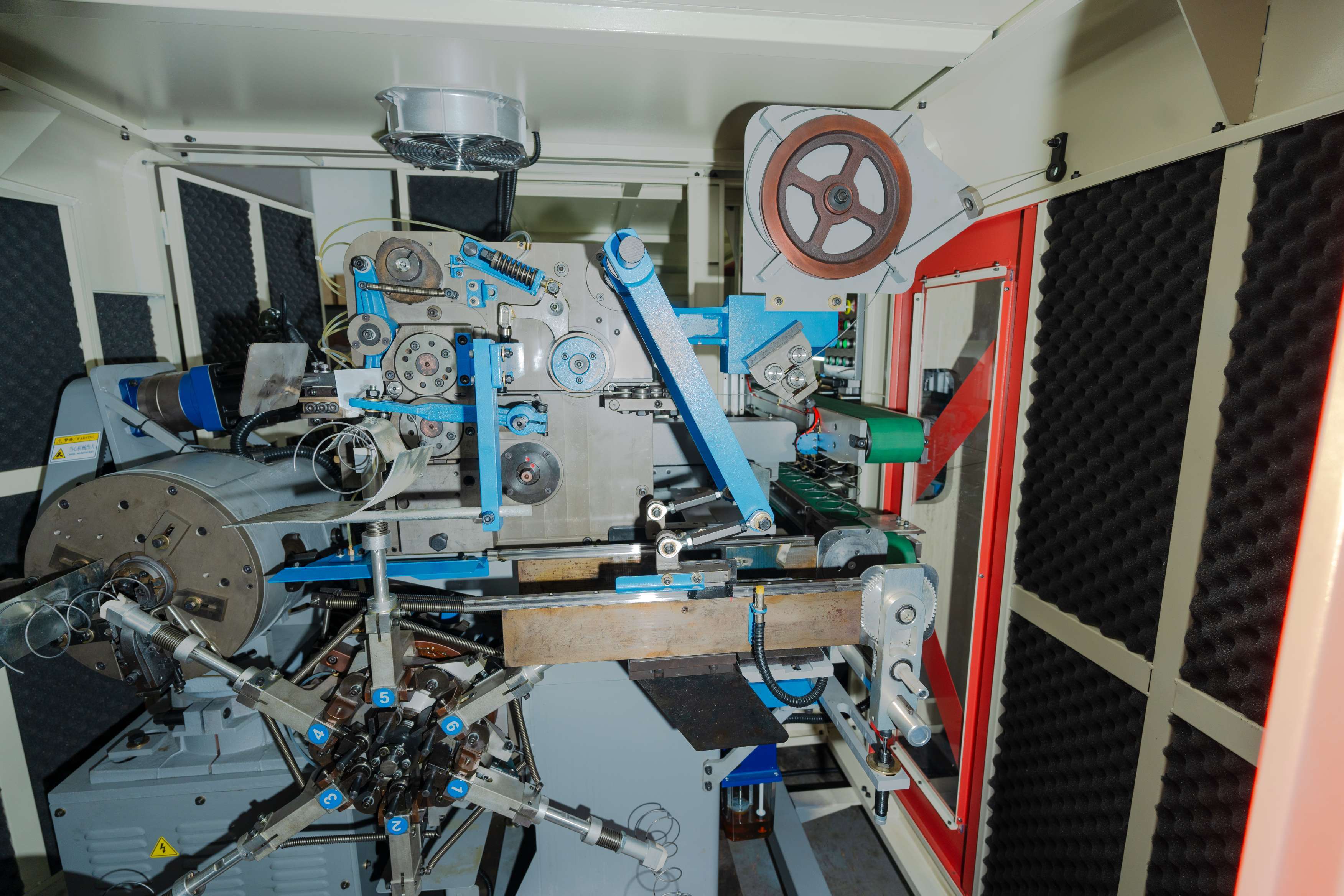

1. High-Speed Spring Formation
Output: 80–90 springs/minute
Daily Production: 65–90 bed nets (1800×2000mm) per 8-hour shift
Spring Dimensions:
Wire Diameter: 1.9–2.4mm
End Ring Diameter: 65–90mm
Height: 80–200mm (customizable)
Convolutions: 4–7 turns
2. Intelligent Automation System

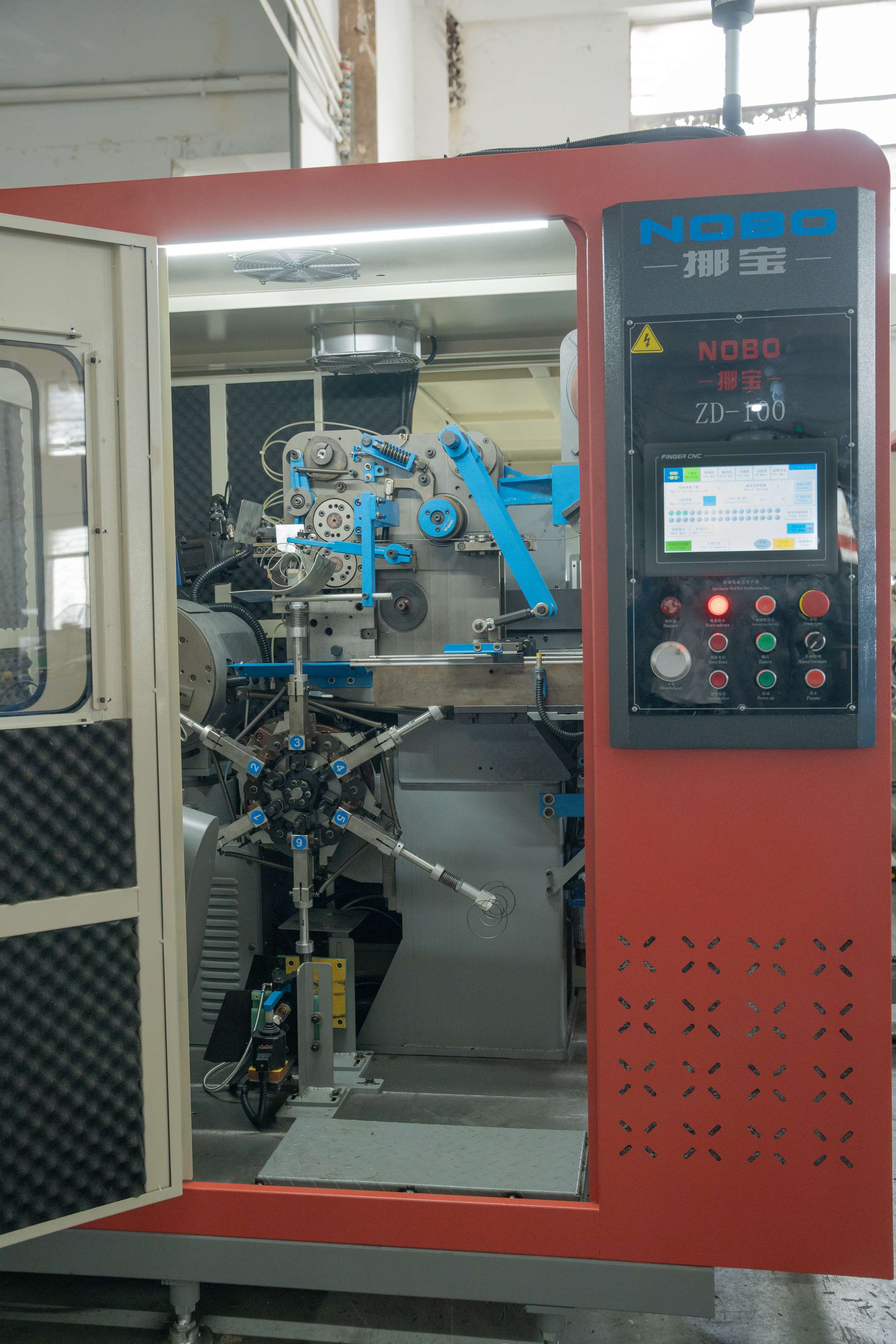

Touchscreen Control: Adjust all spring parameters (diameter, height, pitch) digitally without mechanical recalibration
Directional Flexibility: Three knot-orientation options:
Uniform direction
Alternating knot-to-knot
Paired positive/negative orientation
Integrated Assembly: Simultaneous top/bottom assembly with auto-cutting/clamping of 1.3–1.6mm assembly wires
3. Precision Engineering
Maximum Work Width: 2,000mm

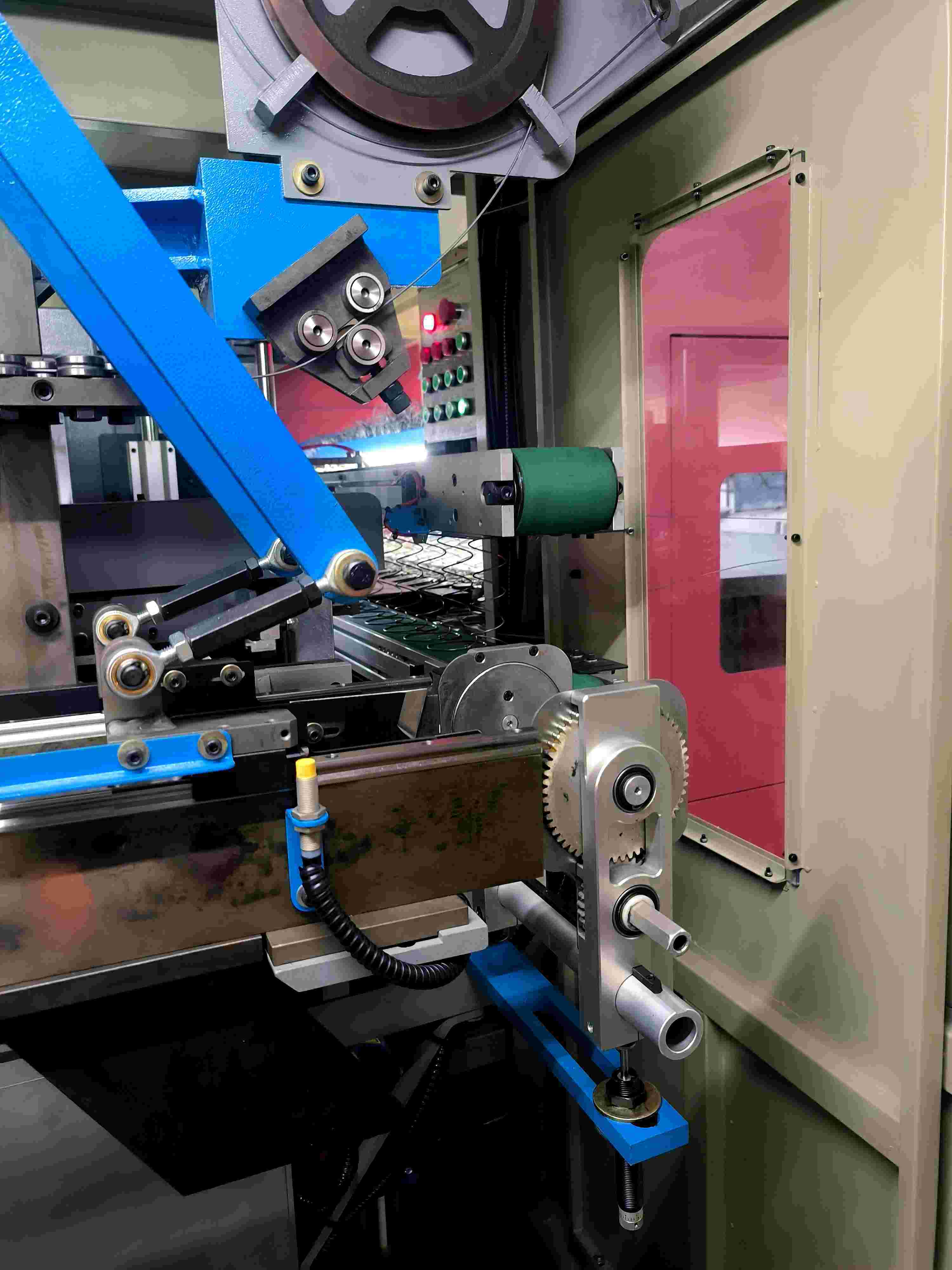

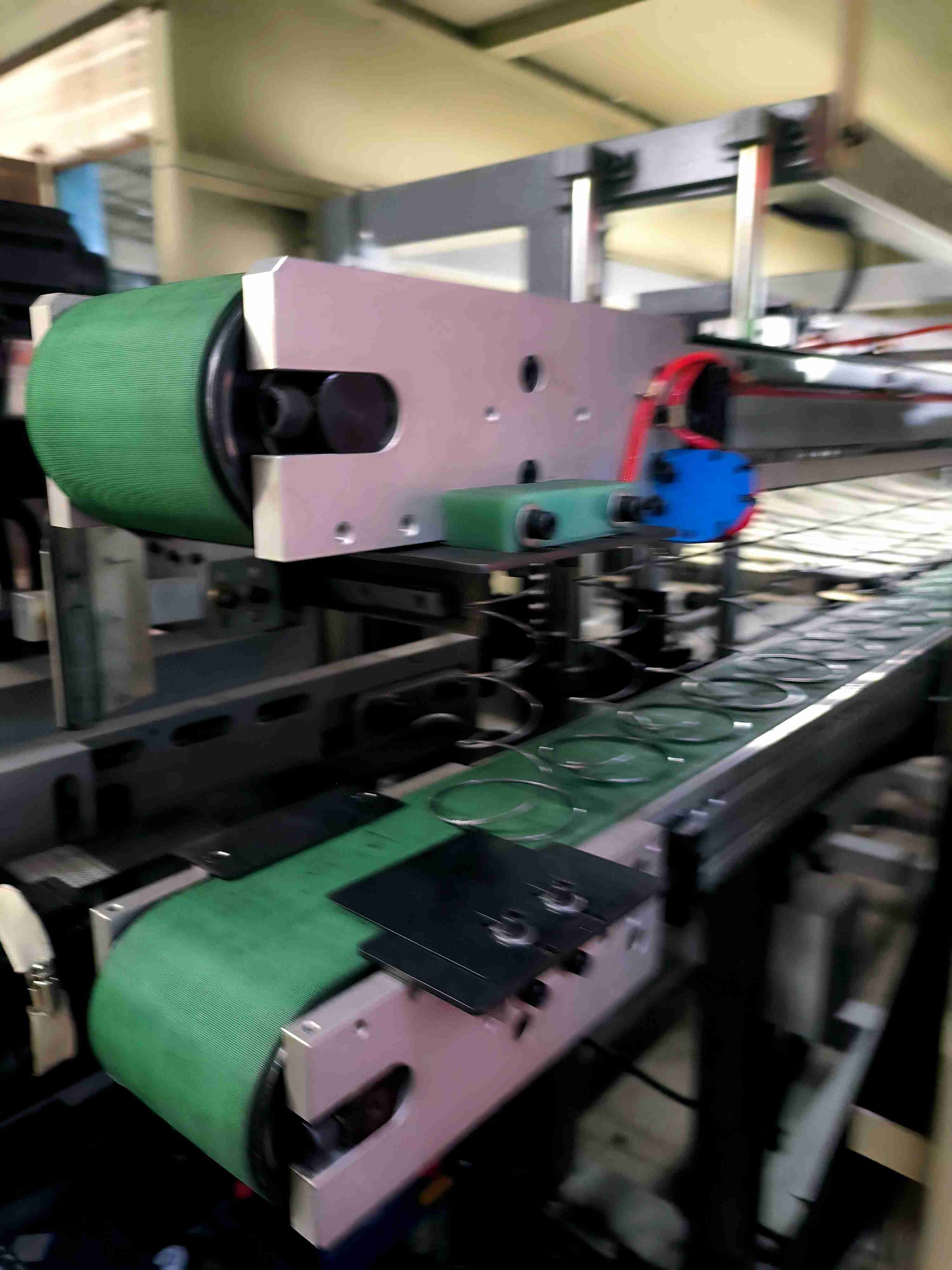

Spring Alignment: Automated side-push feeding system ensures perfect linear arrangement
Heat Treatment: Integrated thermal processing for spring durability
Technical Specifications
| Parameter | Value | |-------------------------|--------------------------------| | Power Supply | 3-phase 380V/50Hz, 20kW | | Machine Weight | 5,500 kg | | Dimensions (L×W×H) | 9000×4500×2100mm | | Bed Net Height Range| 80–180mm | | Fixture Compatibility| 7 series (55–90mm end rings) |
Fixture Series & Spring Density (for 1.8m width):
55–56mm: 29 rows
60–65mm: 27 rows
65–70mm: 24 rows
65–73mm: 22 rows
75–82mm: 19 rows
82–90mm: 18 rows
Operational Advantages
Zero Mechanical Recalibration: Digital parameter adjustments reduce downtime by 70%
Remote Diagnostics: Real-time network monitoring and error resolution
Material Efficiency: Precision wire usage minimizes waste
Customization Ready: Supports non-standard spring dimensions and configurations
Industry Applications
Ideal for mattress manufacturers requiring:
High-volume production of Bonell spring systems
Rapid product changeovers between designs
Consistent quality control in bulk orders
Custom bed net configurations for specialty markets
