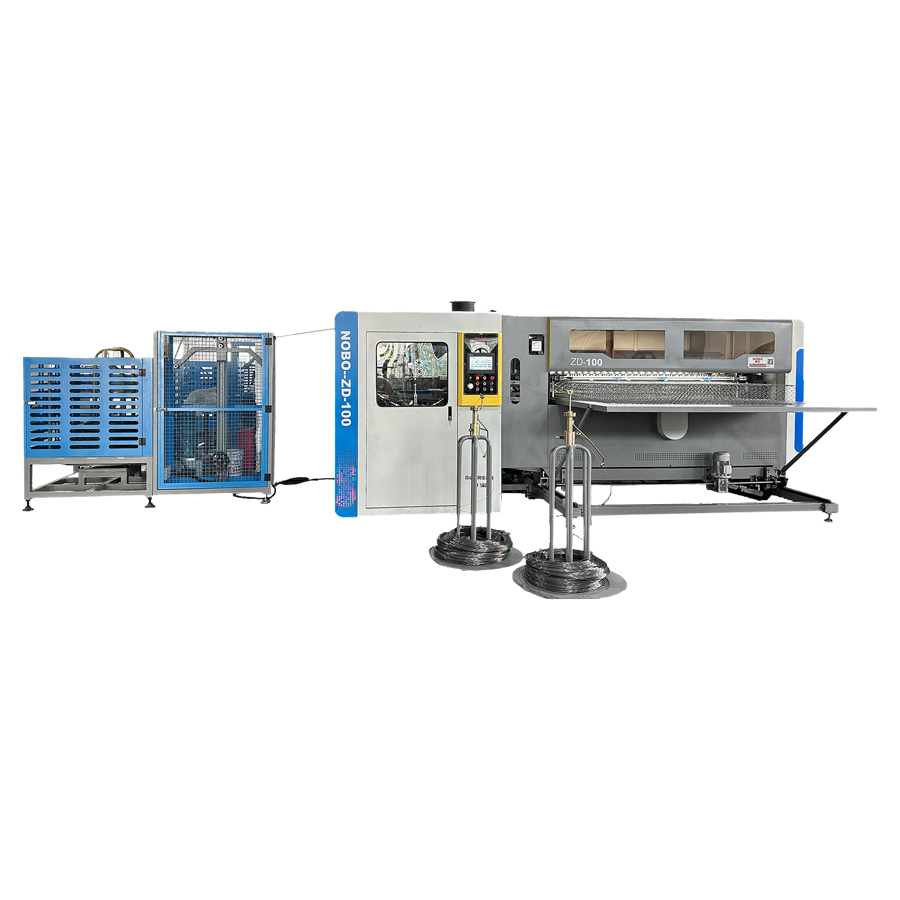

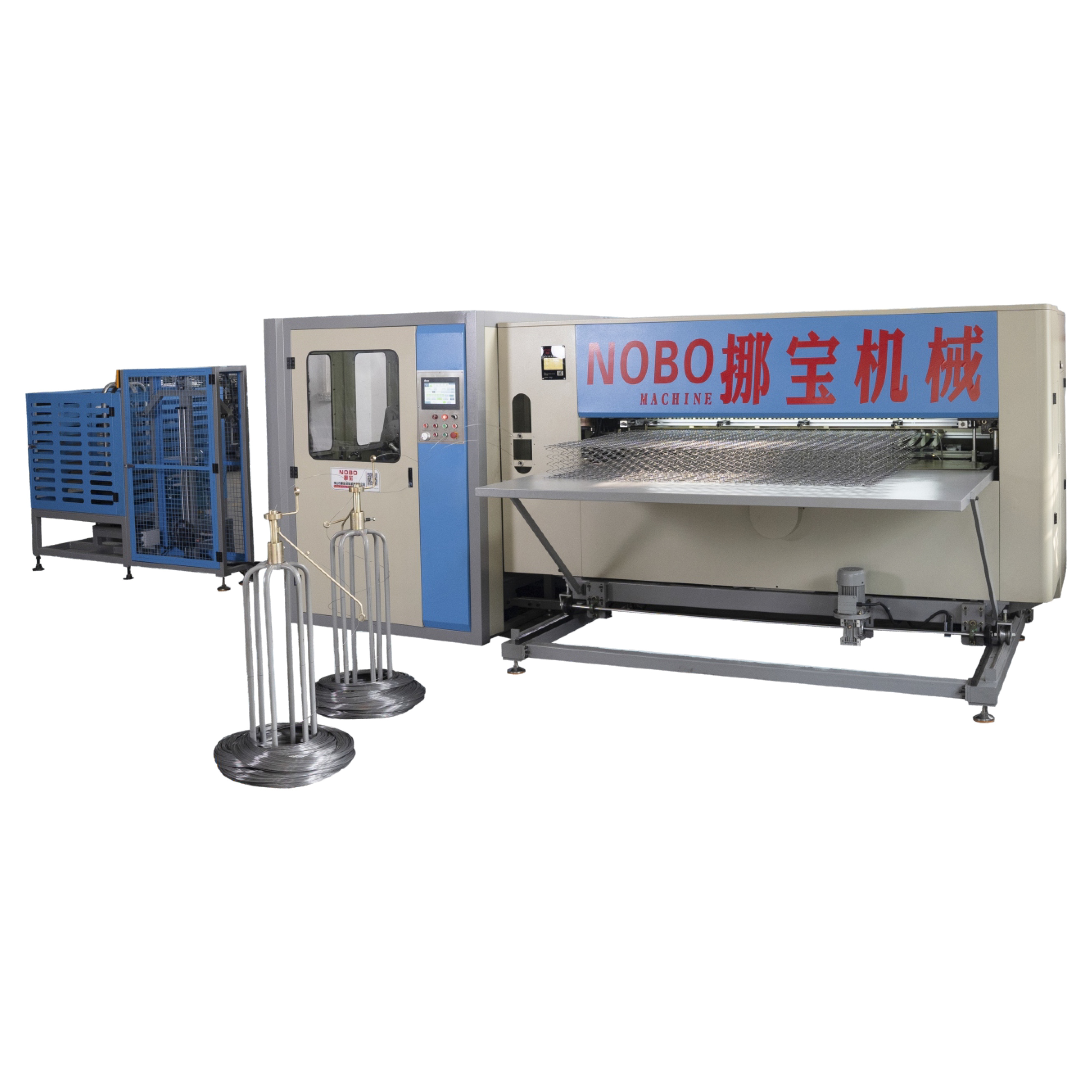

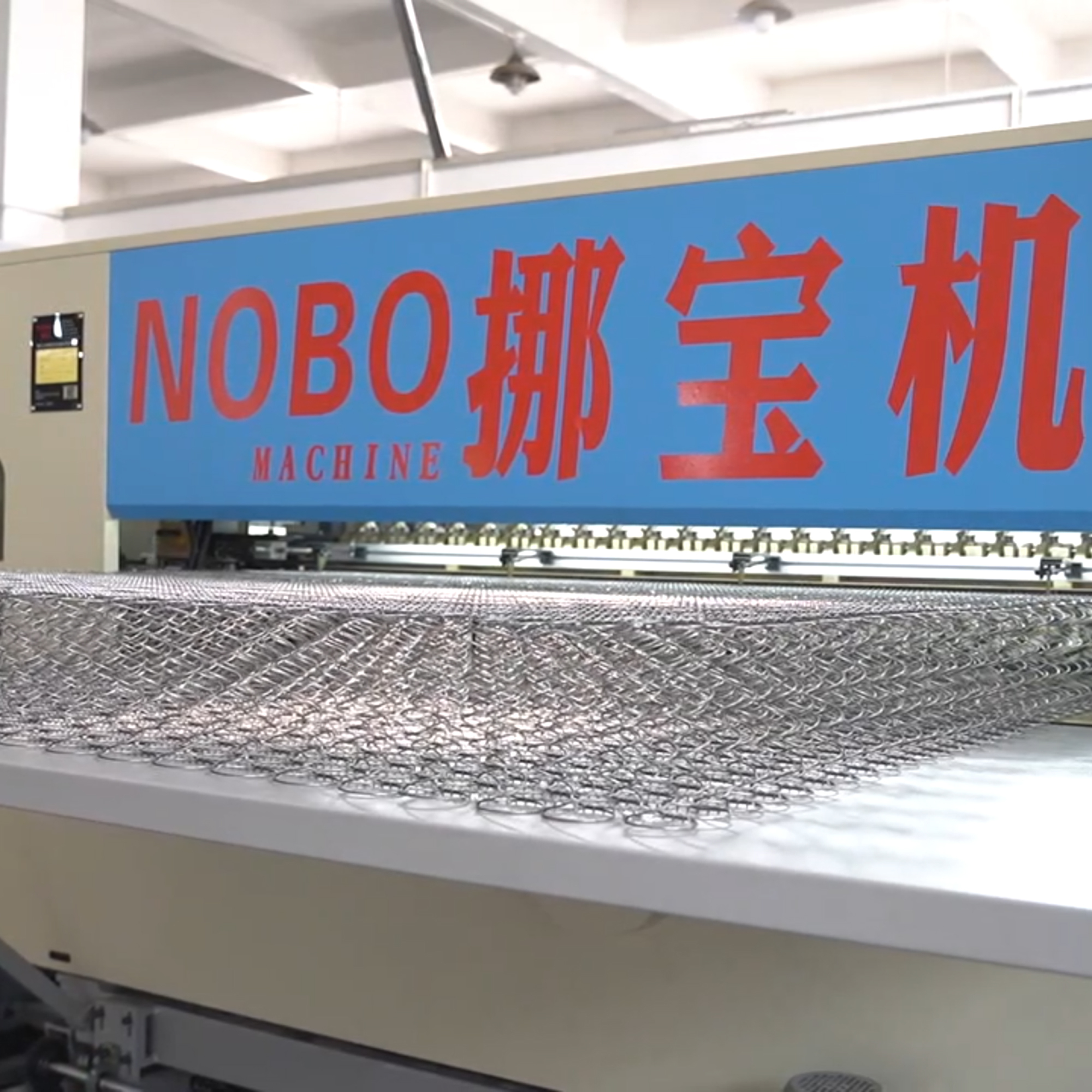

CNC Mattress Spring Bed Net Production Line

No.ZD-100S
1.Spring type:Bonell
2.Working principle:Semi EtherCAT Servo control
3.Spring Capacity:80-90Springs/min
4.Capacity:65-90 Sheets/8 hours(1800MM*2000mm)
5.Max width:2m
6.Spring end ring diameter:65mm-90mm
7.Spring wire diameter:1.9-2.4mm
8.Assembly wire diameter:1.3-1.6mm
9.Spring Height: 80-200mm(other size can be customized)
10.Convolutions:4-7 turns
  • CNC Mattress Spring Bed Net Production Line
  • Automatic Bonnell Spring Bed Net Machine
  • Automatic Bonnell Spring Bed Net Machine
  • Automatic Bonnell Spring Bed Net Machine
  • Automatic Bonnell Spring Bed Net Machine
  • Automatic Bonnell Spring Bed Net Machine
  • CNC Mattress Spring Bed Net Production Line
  • Automatic Bonnell Spring Bed Net Machine
  • CNC Mattress Spring Bed Net Production Line
  • Spacification
  • Factory Profile
  • Best Service

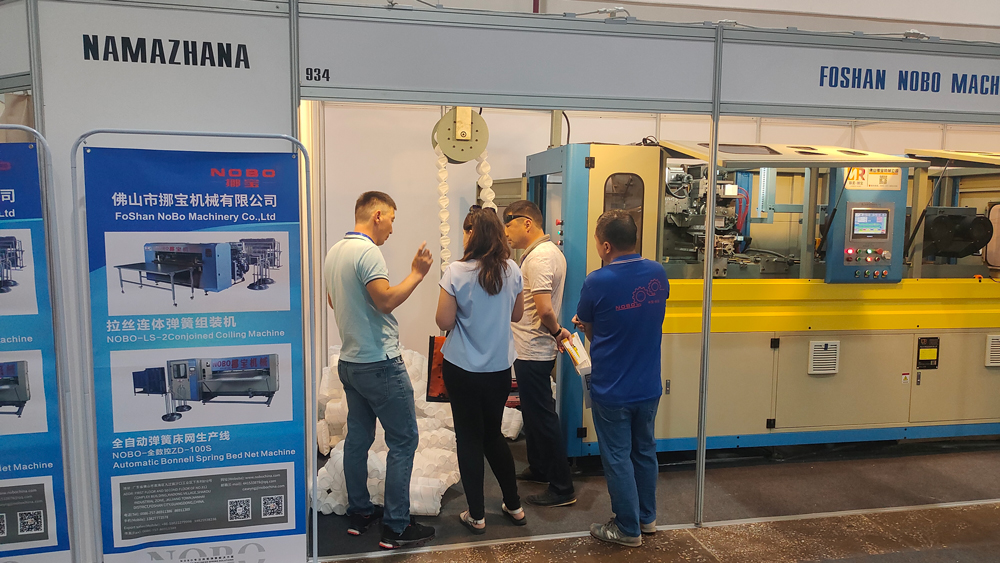

  • Exhibition

Application

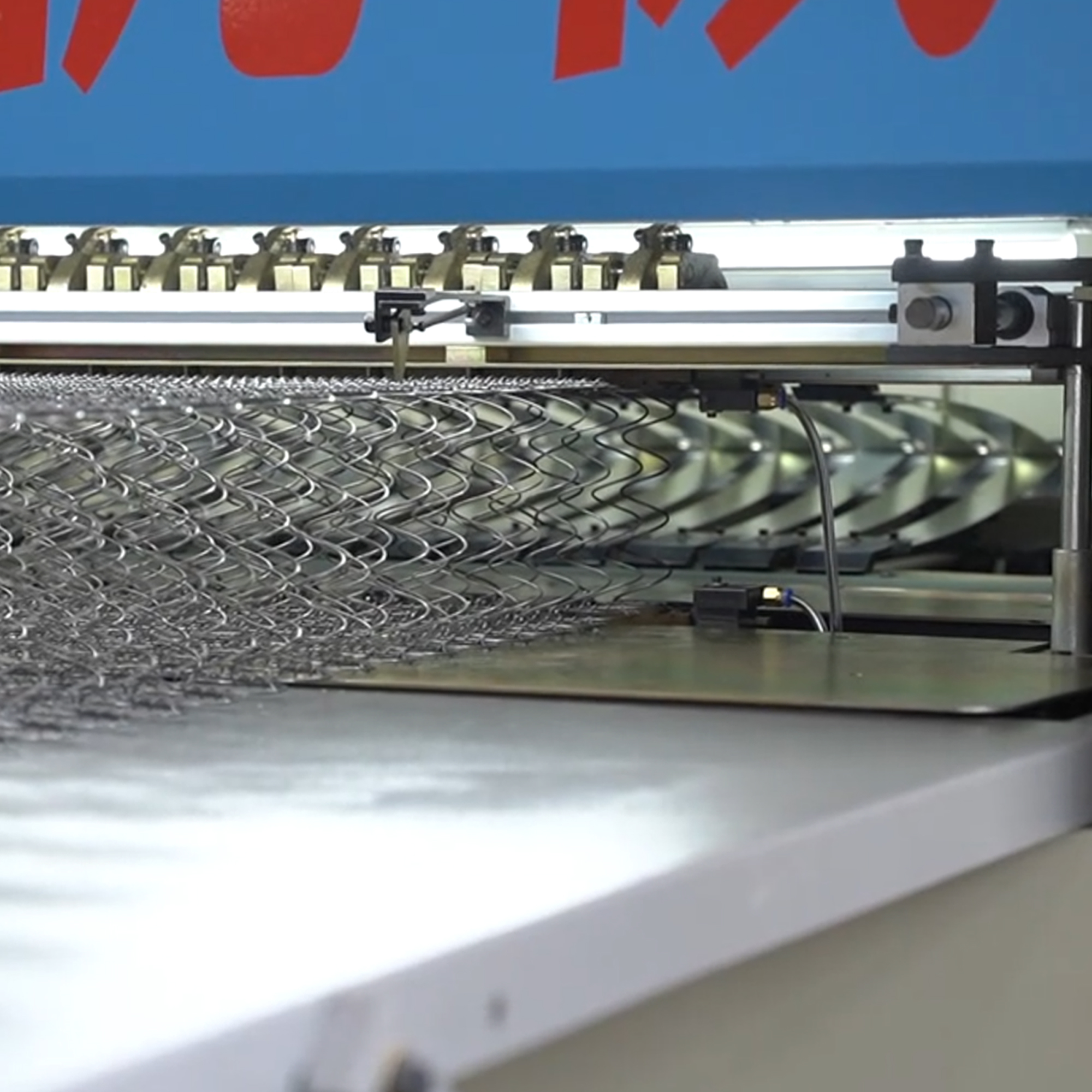

The NOBO-ZD-100S is a CNC automatic production line of the bed frame of the Bonell springs that is developed by our company.It can make the bed frame from the wire directly.

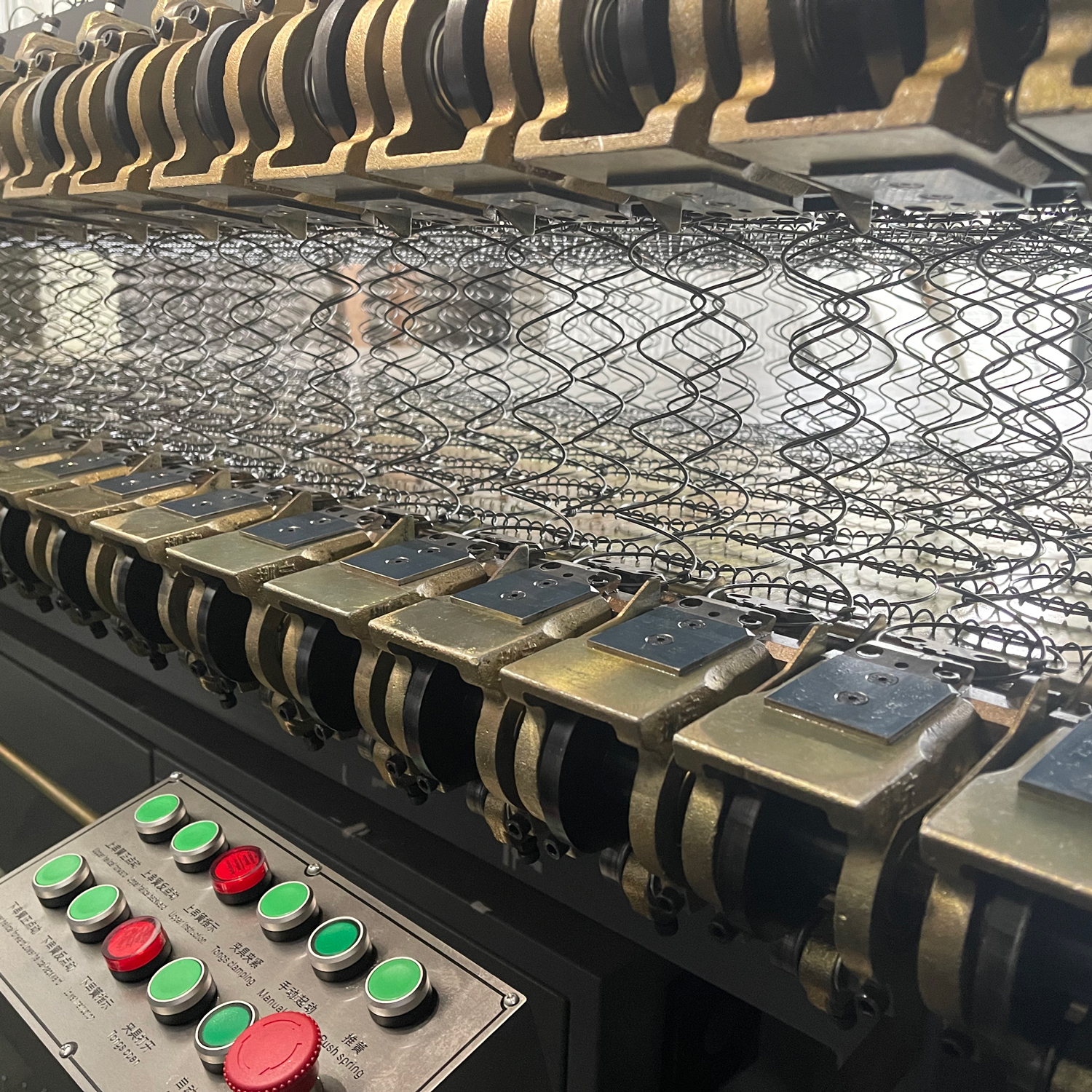

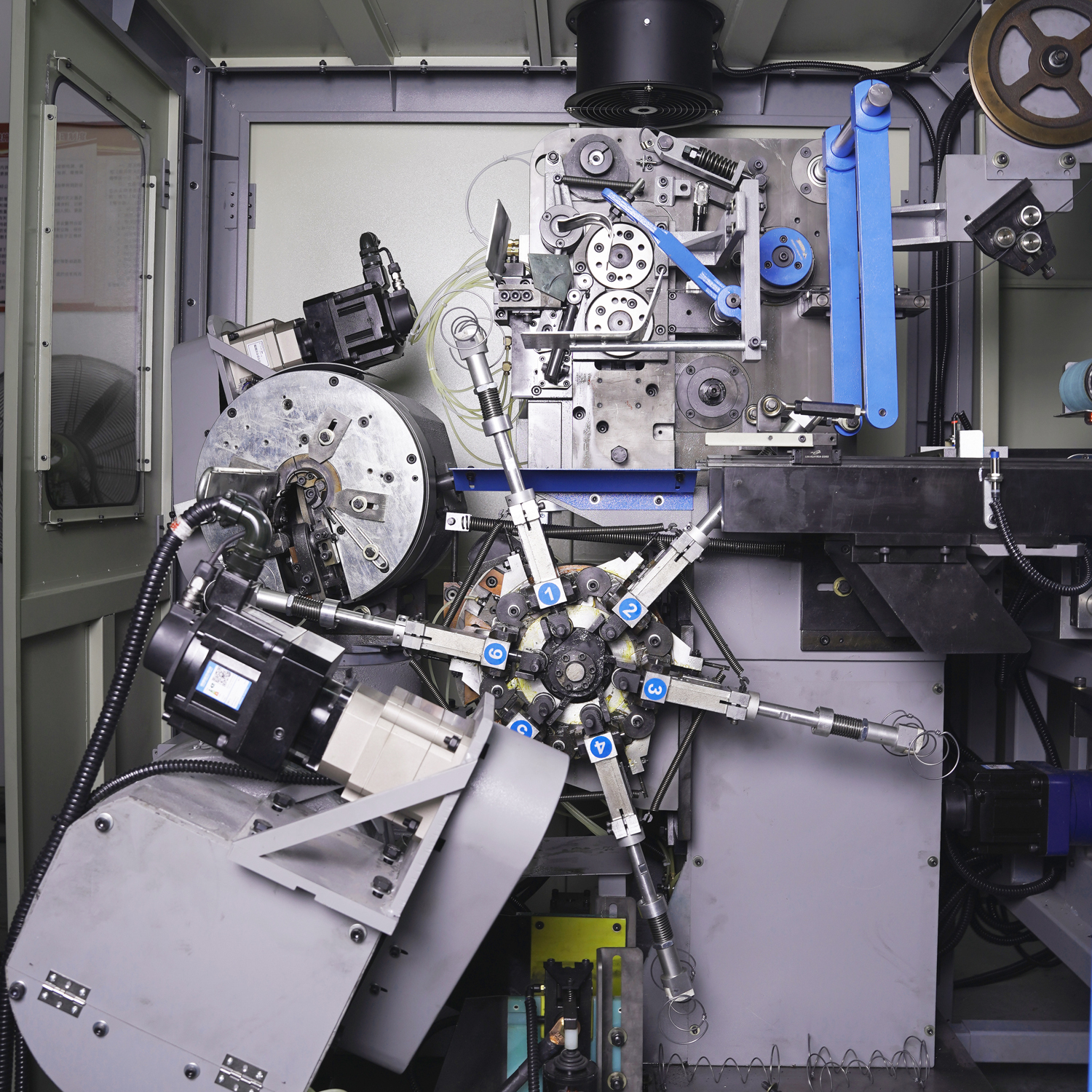

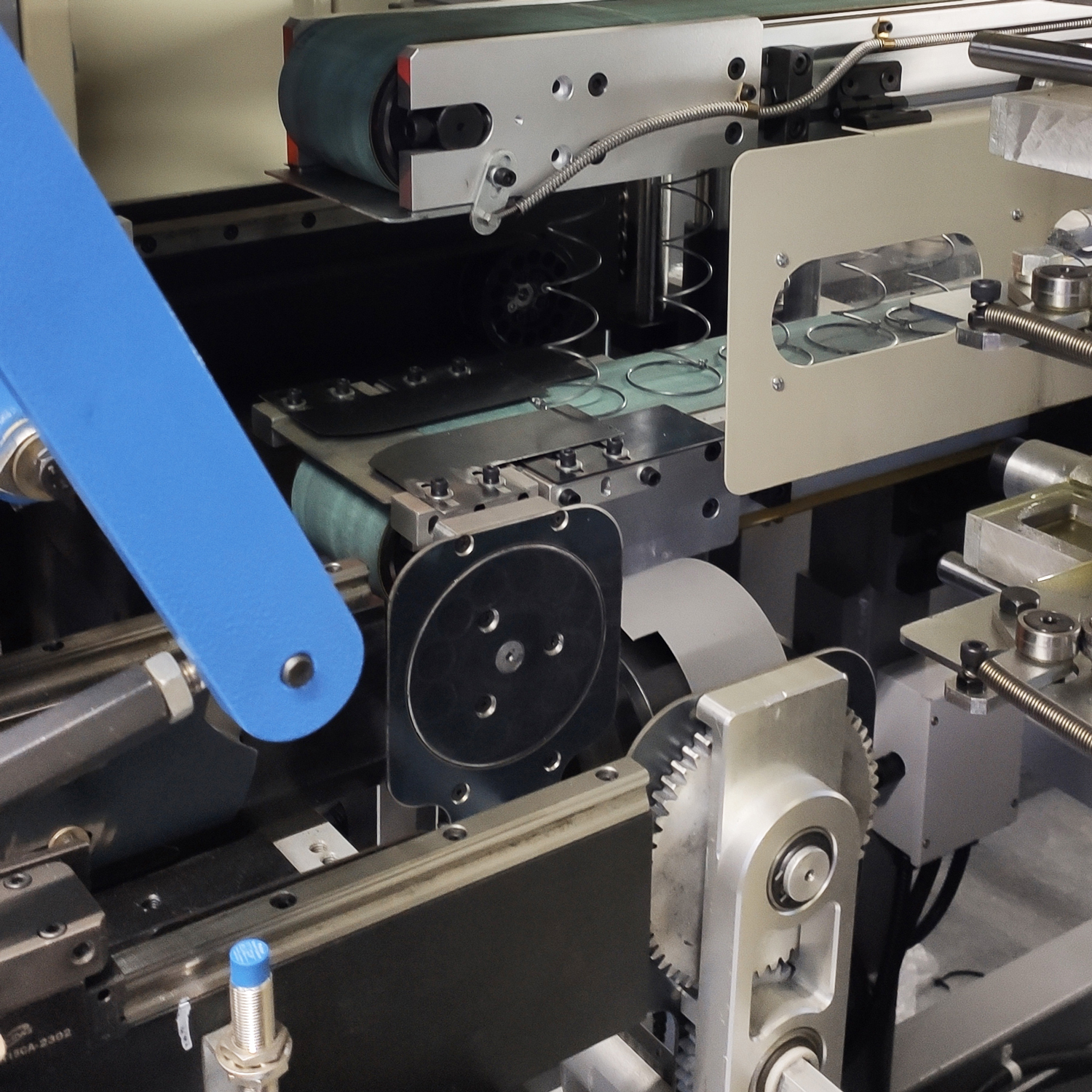

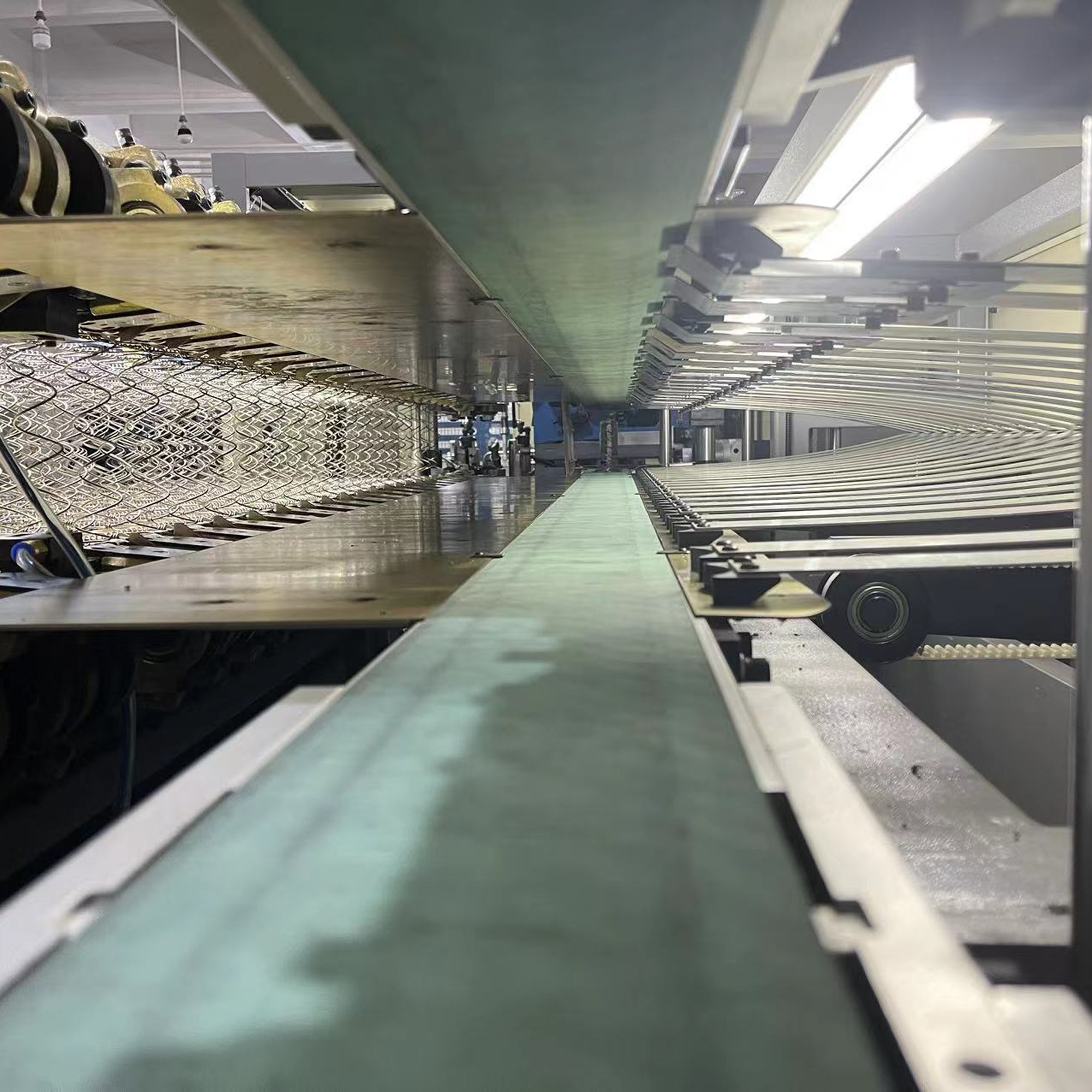

When the machine is working,after numerical controling to adjust,then the machine can form the spring shape,knot the both two sides,heat treat and whole column output.All the datas of the spring can be adjusted by the touch screen of the computer and no need to adjust the mechanical cam system.When the springs are done,there is a automatic feeding system to make the springs in line and push the whole line to the assembler,and then assemble the springs from above and bottom at the same time.


The assembly wire can be auto-cutted and auto-clamped at the both end sides.The Direction of the spring knots are adjustable.Have some options for the spring knots direction.Option 1,all in the same direction.Option 2,direction knot to knot.Option 3,one in positive direction and one in negative direction.Afer all,the machine have the remote assitance by network that can help to check the error and monitor the datas.

Technical data:

Work Efficiency:
75-100 Sheets/8 hours(1800MM*2000mm)
Maximum width of the bed nets:
2000mm (option2000mm)
Adaption bed nets high:
80-180mm
Spring wire diameter:
2.0-2.4mm
String of spring steel wire diameter:
1.3-1.6mm
The total electric power:
20kw
Weight of machines:
5500kgs
Electrical source:
3 phase 380V/50HZ
Mounting dimension:
length 9000 x width 4500 x high 2100mm
Applies to spring-caliber:
58 Fixture Series 55-56mm(1.8 meters29 rows of springs)
60Fixture Series 60-65mm(1.8 meters27 rows of springs)
68 Fixture Series 65-70mm(1.8 meters24rows of springs)
78 Fixture Series 65-73mm(1.8 meters22rows of springs)
88 Fixture Series75-82mm(1.8 meters19rows of springs)
98 Fixture Series 82-90mm(1.8 meters18rows of springs)

NOBO MATTRESS MACHINERY is established in foshan since 2007 ,we are professionally manufacturing the mattress machinery for China and oversea market in the past decade ,after years growing , we are becoming one of the leading high tech company in the mattress industry.

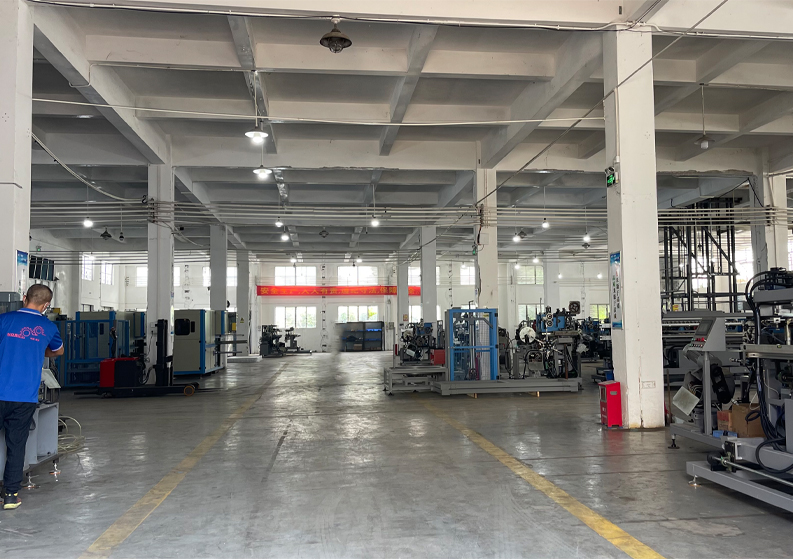

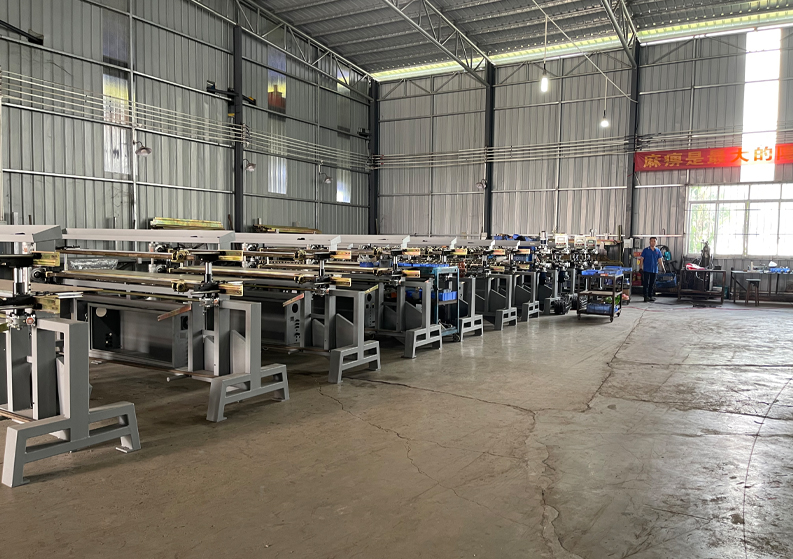

Mattress Spring Machine Workshop 1

Production and assembly of mattress spring equipment and automatic mattress spring bed net production line

Mattress Spring Machine Workshop 2

In good order Mattress spring equipment for assembly is being produced

Mattress Spring Machine Workshop 3

In good order Mattress spring equipment for assembly is being produced

Pocket Spring Machine Workshop

It is mainly used for the production and assembly of mattress pocket spring bed net production line

Mattress Spring Assembling Machine Workshop 1

It is mainly used for the production and assembly of Conjoined Coiling Machine.

Mattress Spring Assembling Machine Workshop 2

It is mainly used for the production and assembly of Mattress Spring Assembling Machine.

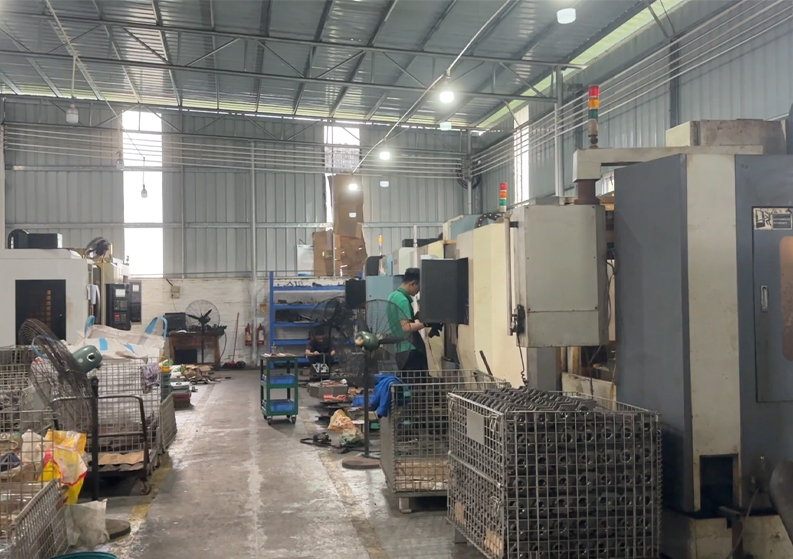

CNC machining workshop

Most of the parts of the mattress machine are processed through this workshop before entering the assembly link

Mattress Machine Parts Warehouse 1

Mattress machine parts storage warehouse, the production of good machines will be stored in this warehouse

Mattress Machine Parts Warehouse 2

Mattress machine parts storage warehouse, the production of good machines will be stored in this warehouse

Office Hall On The Second Floor

On the second floor of the factory, there are various offices, reception rooms, accessories sales office and innovation research and development office

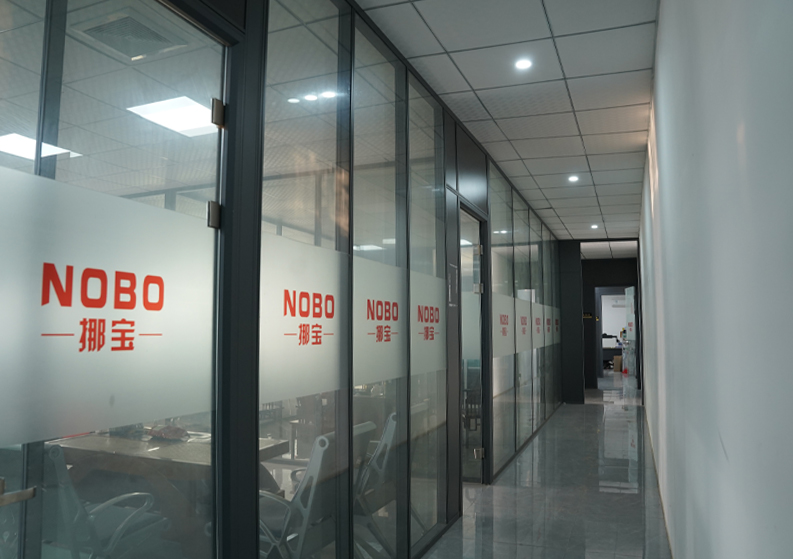

Office corridor on the second floor of the factory

On the second floor of the factory, there are various offices, reception rooms, accessories sales office and innovation research and development office

Innovation and R&D Office

The main function is to develop new (innovative) mattress equipment products and optimize the technical support of existing mattress equipment products under the leadership of the senior team according to the development strategy of the factory.

    Best Service:

    1. Pre-sale Service

    Good idea

    Customer provides the mattress factory area and daily output, and we help to work out the plan

    Developed & Produced

    Carry out R&D and production assembly according to the mattress production line plan

    Machine details and freight charges
    We will make a professional report, which includes the detailed parameters of the machine, the quotation and the approximate amount of freight, which will be changed according to the customer's demand.

    Machine advantages and comparison
    We will provide machine pictures and videos, you can watch the machine operation through video chat at any time, so that customers can better observe.
    We will inform customers of the advantages of our machines and the comparison with peers, so that customers can make better choices, rather than blindly promote.

    2. On-purchase Service

    Machine progress and report
    We can report the machine production progress for customers at any time, take photos and video, and also directly video chat.

    Technical support and training
    The sales service team will provide customers with technical support and training. Whether it is the installation, commissioning or daily use of the product, the sales service team will respond in time and provide solutions. At the same time, the in-sales service team will also provide relevant training for customers to help them better use and maintain the products.

    3. After-sales Service

    Video of machine spring parameters

    When the machine is ready to adjust the parameters, we will shoot a video and send it to the customer with subtitles. We will also send the machine instructions.

    The equipment or production line will be shipped after customer inspection and satisfaction.24H Online Service.

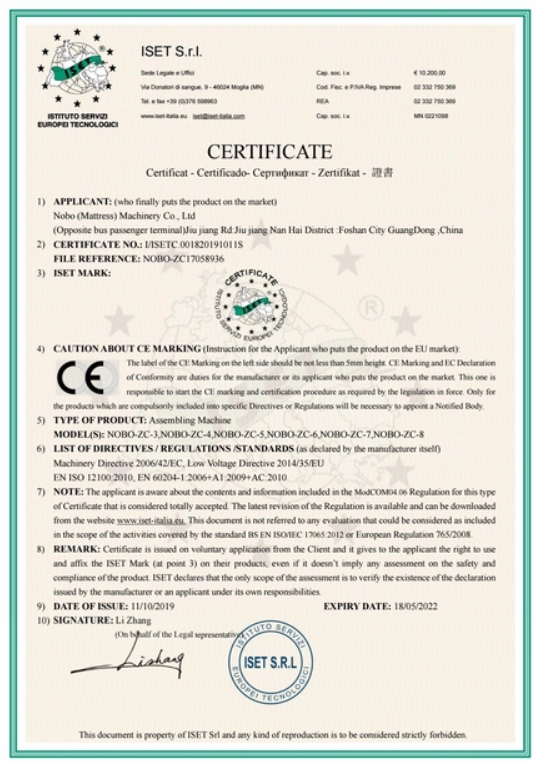

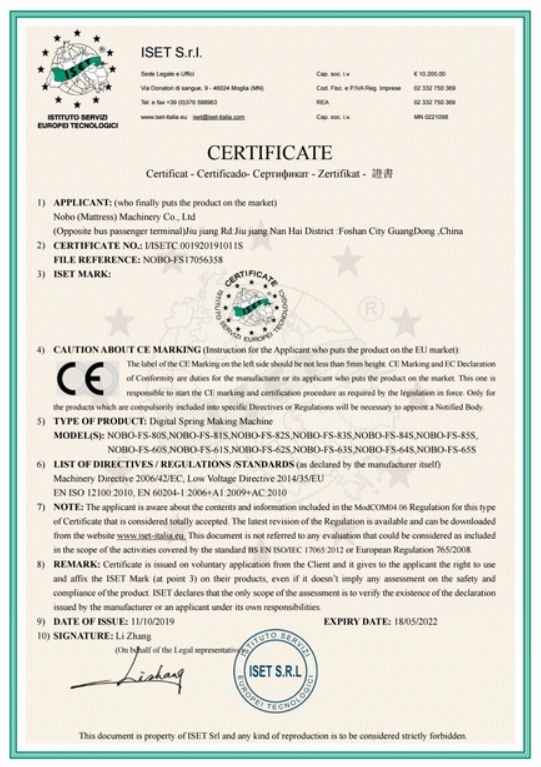

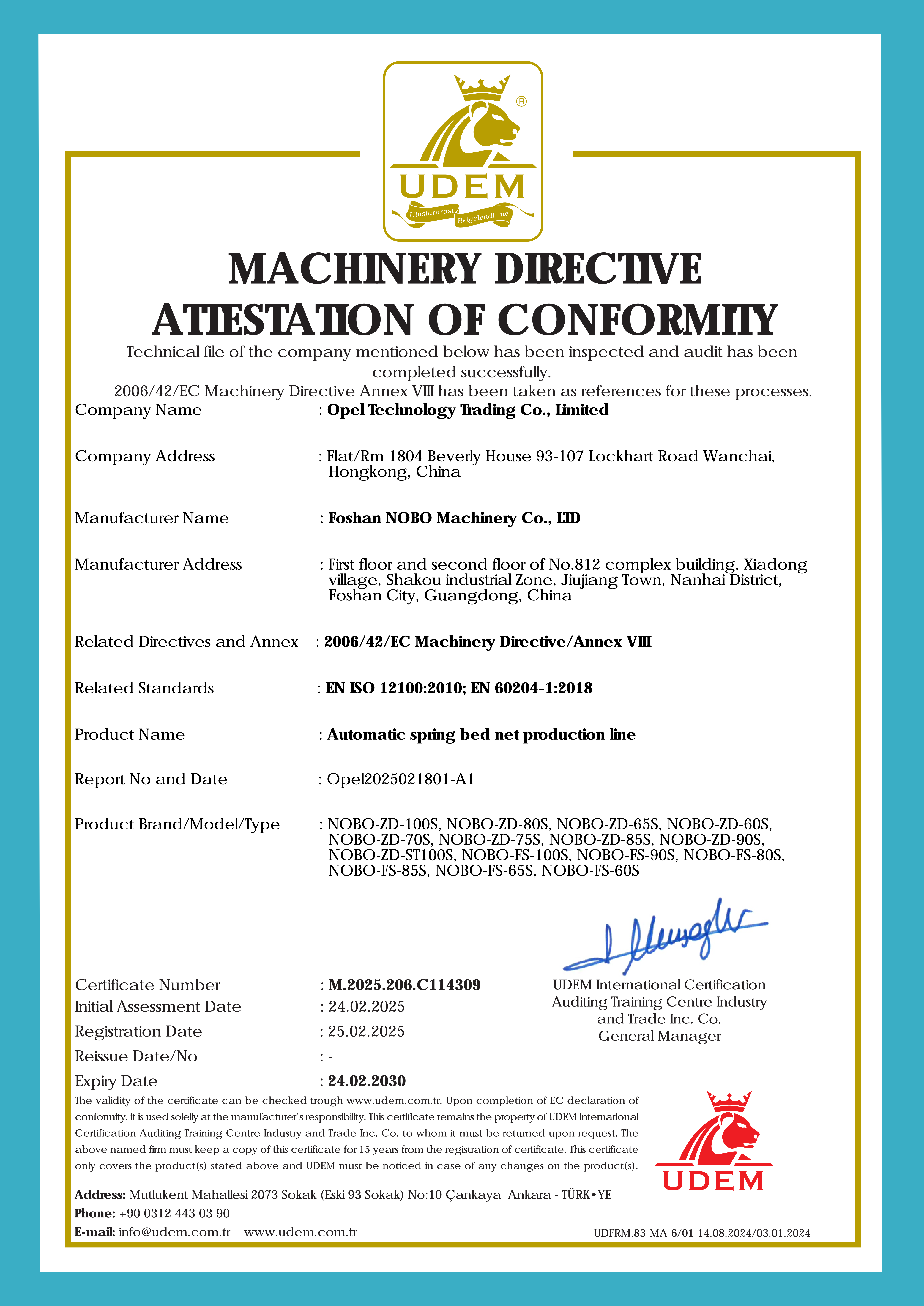

    4. CE

    Mattress Spring Machine,Mattress Spring Assembling Machine

    Mattress Spring Bed Net Production Line and so on.

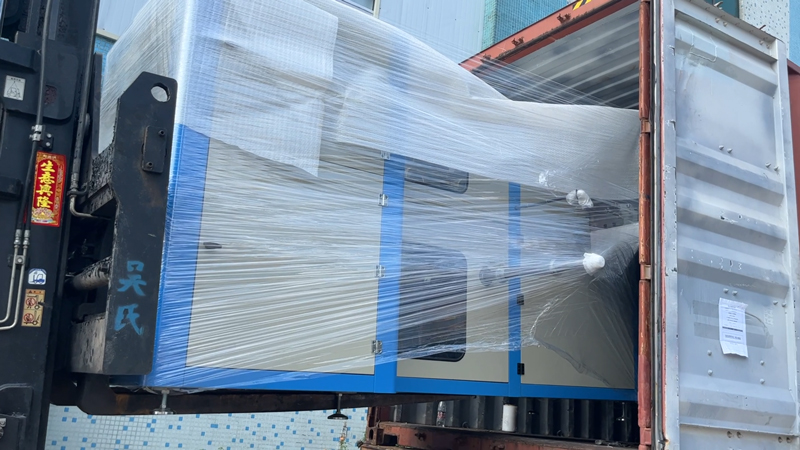

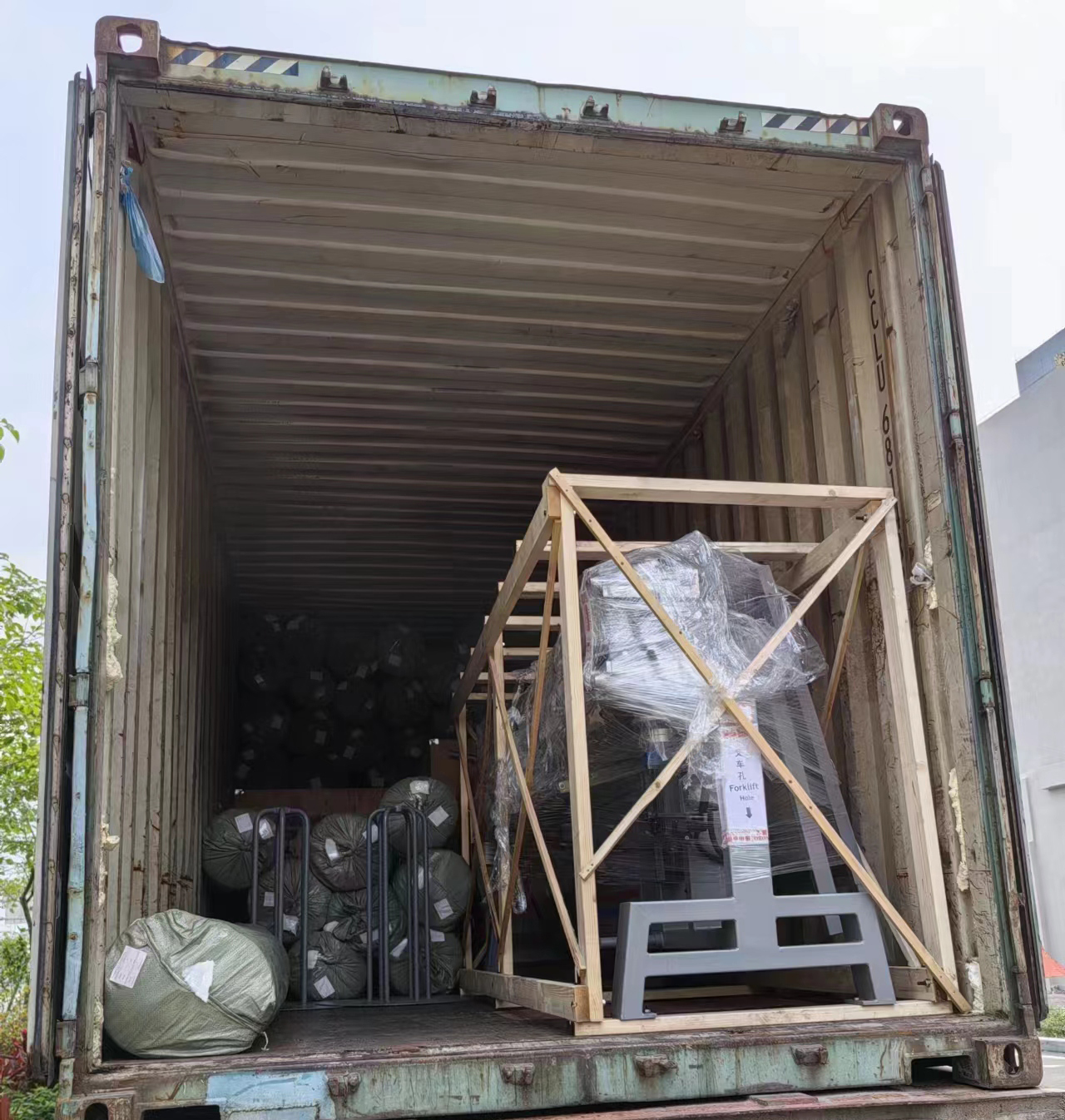

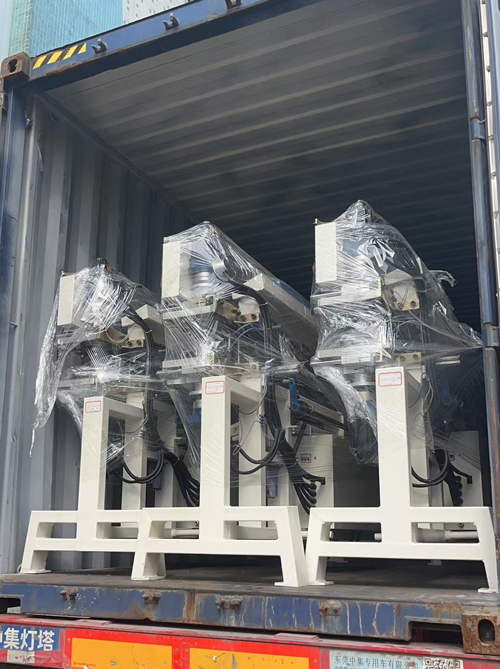

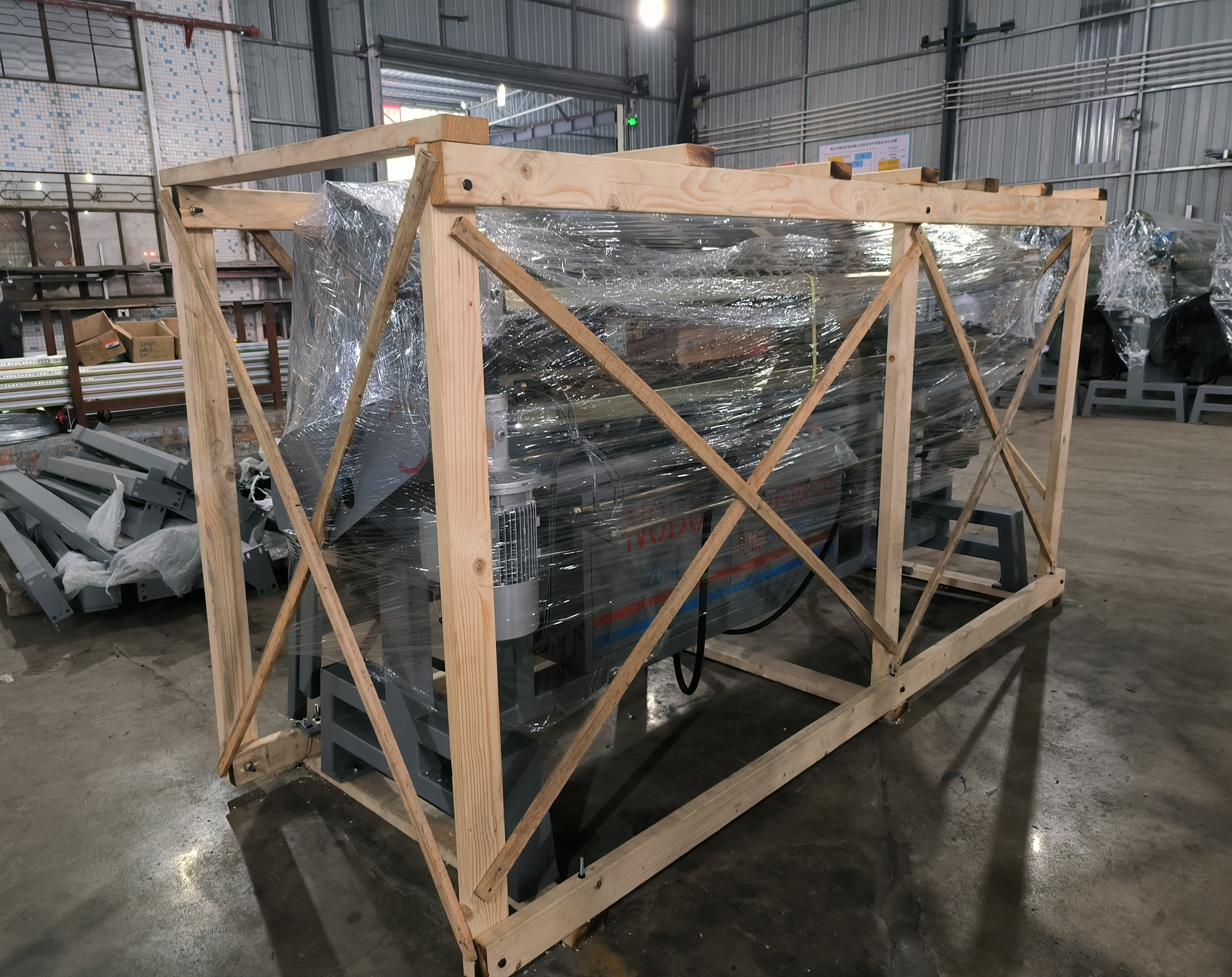

    5. Package and ship
