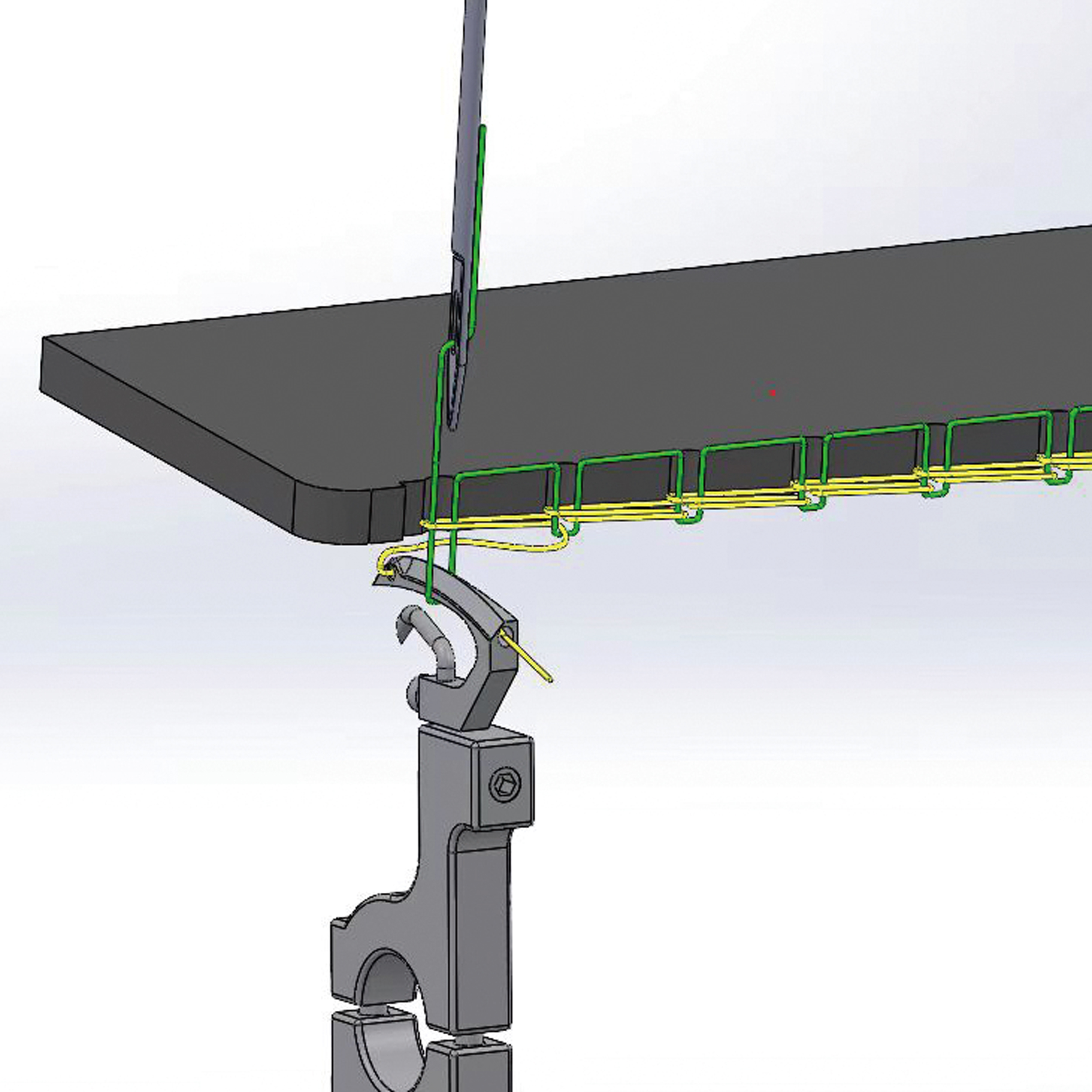

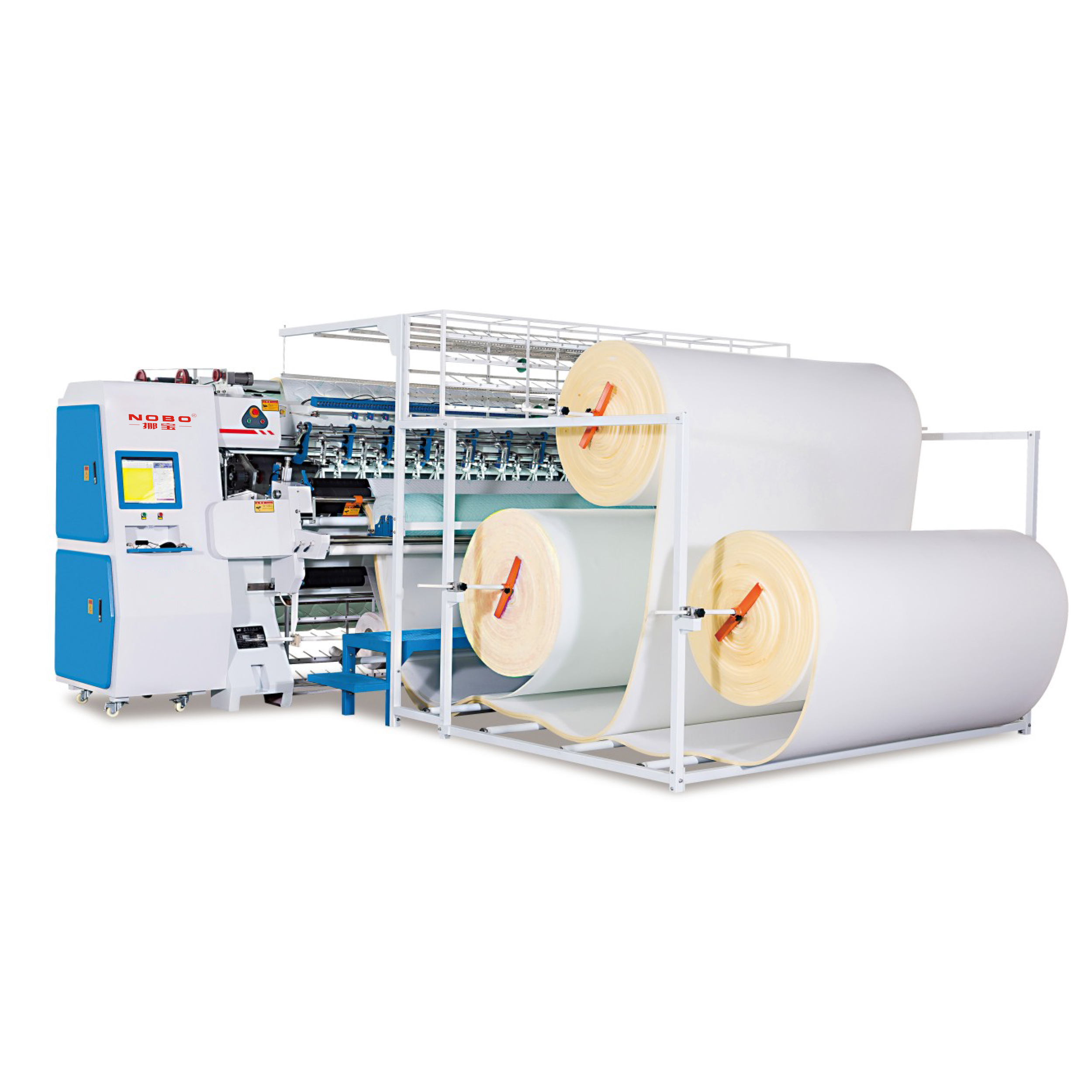

Intelligent chain stitch non shuttle multi-needle quilting machine
No.4W
1.Space between needle rows:50.8, 76.2, 127(5" ) 76.2, 76.2, 152.4(6" ) 2.Space between needles:25.4mm X-axis 3.movement distance:304.8mm 4.Thickness of quilting:≤80MM(for all patterns) 5.Stitch length:3-8 6.Speed of operation:60-260(m/hour) 7.Model of needle:24/180 23/160 22/140 21/130 8.Speed of main shift:500-1200(PRM)
Application: Advanced computerized control system and mechanical manufacturing processing, improve the speedand output.

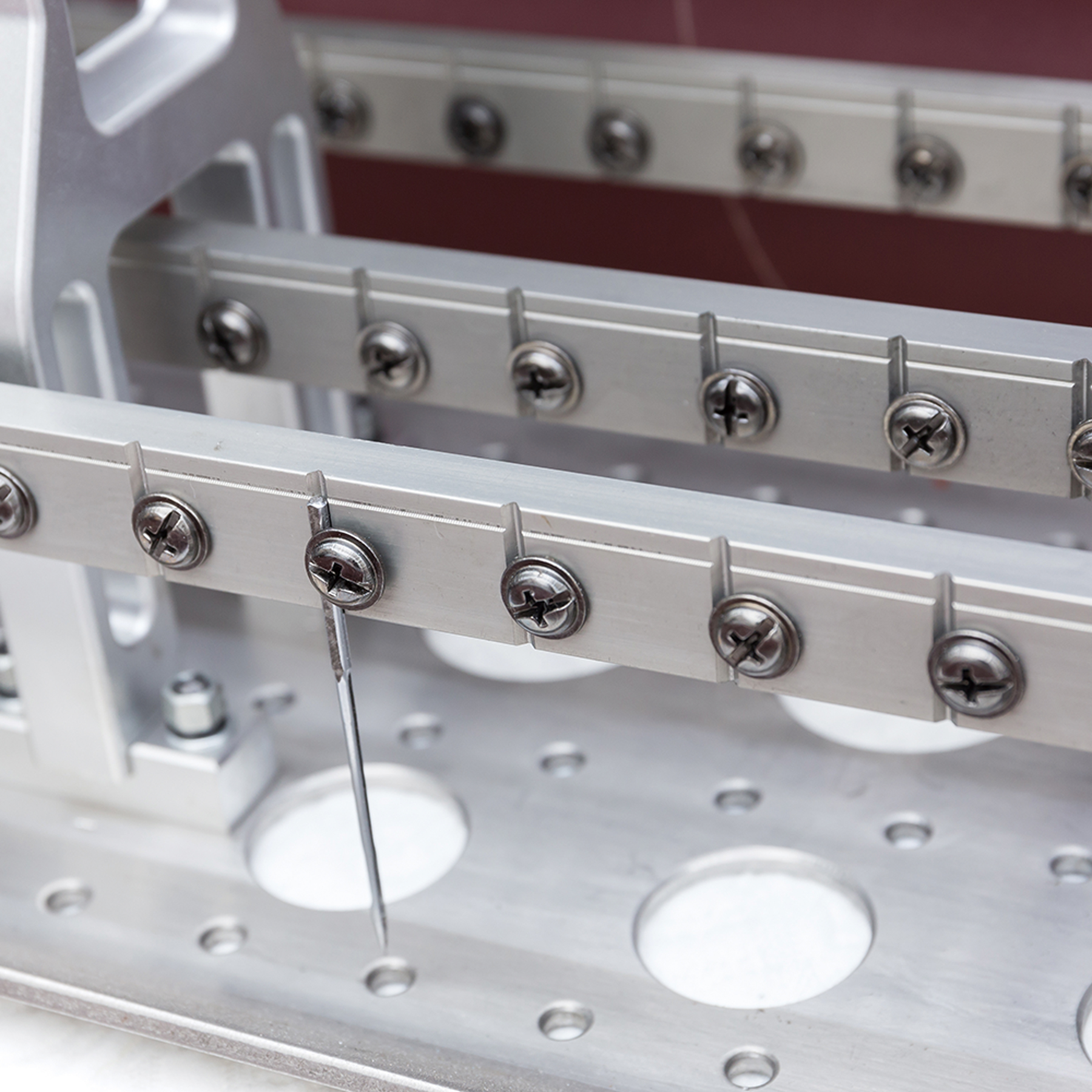

Needle bar and press plate adopt double rocker mechanism without cam, avoid the lube and dirty thefabric effectively.
Adopt advanced infrared detection to detect the up and down thread, machine stop automaticallywhen thread break.
The main shaft is controlled by frequency converter for automatically lifting the needle, and the saddleand roller are driven by servo.Quilting: 180° pattern, 360° pattern, continuous pattern, tack jump pattern.
Technical data:
Dimension(L*W*H)
5930*4880*2330
Quilting width
2450
Space between needle rows
50.8, 76.2, 127(5" ) 76.2, 76.2, 152.4(6" )
Space between needles
25.4mm
X-axis movement distance
304.8mm
Thickness of quilting
≤80MM(for all patterns)
Stitch length
3-8
Speed of operation
60-260(m/hour)
Model of needle
24/180 23/160 22/140 21/130
Speed of main shift
500-1200(PRM)
power
10KW
Voltage
380V/50HZ 220V /60HZ
Machine Weight
4800KG
