1.Work Efficiency:50-80 units/8 hours 2.Motor type: servo motor 3.Maximum width of the bed nets:2000mm 4.Adaption bed nets high:80-180mm 5.Spring wire diameter:2.0-2.4mm 6.String of spring steel wire diameter:1 .3- 1.6mm

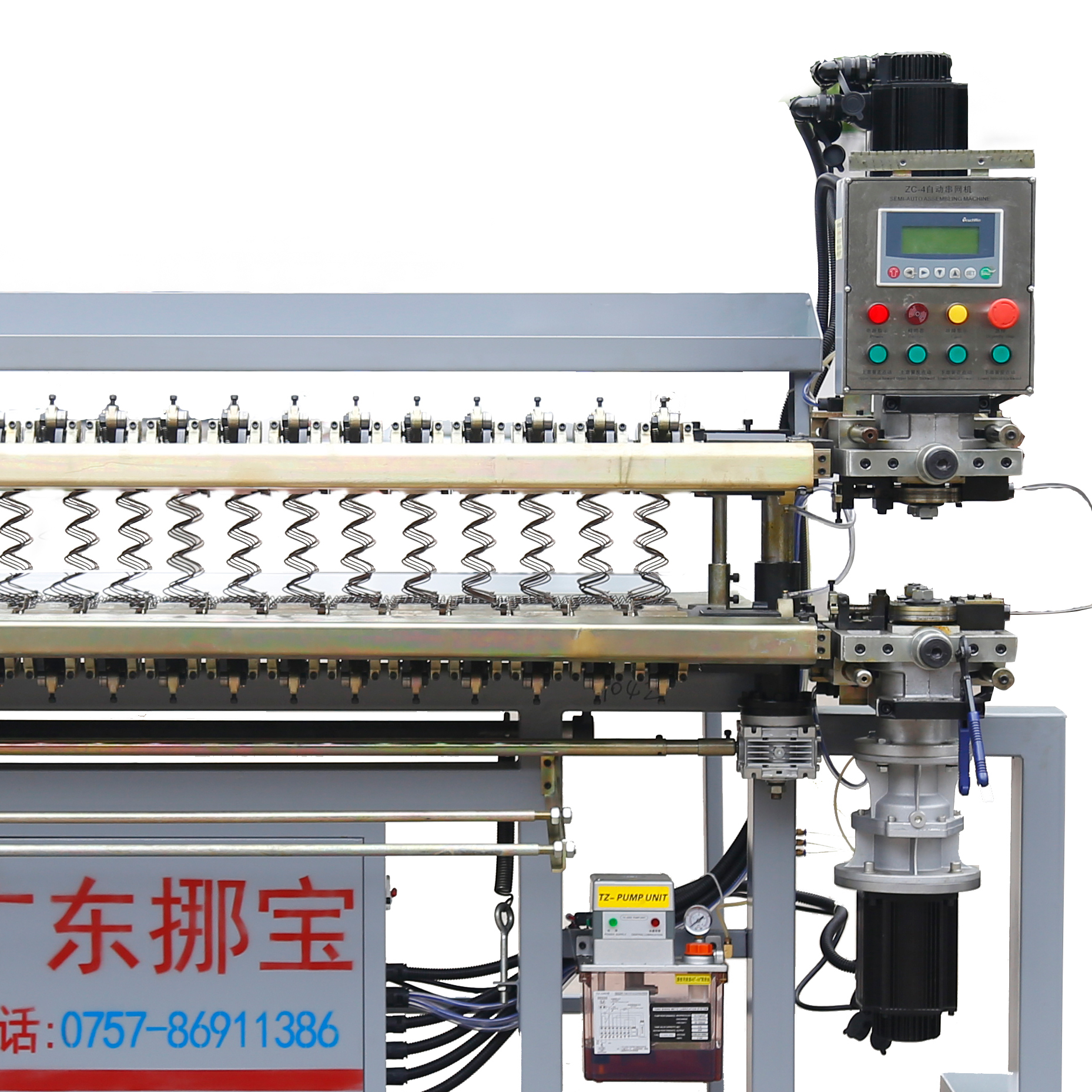

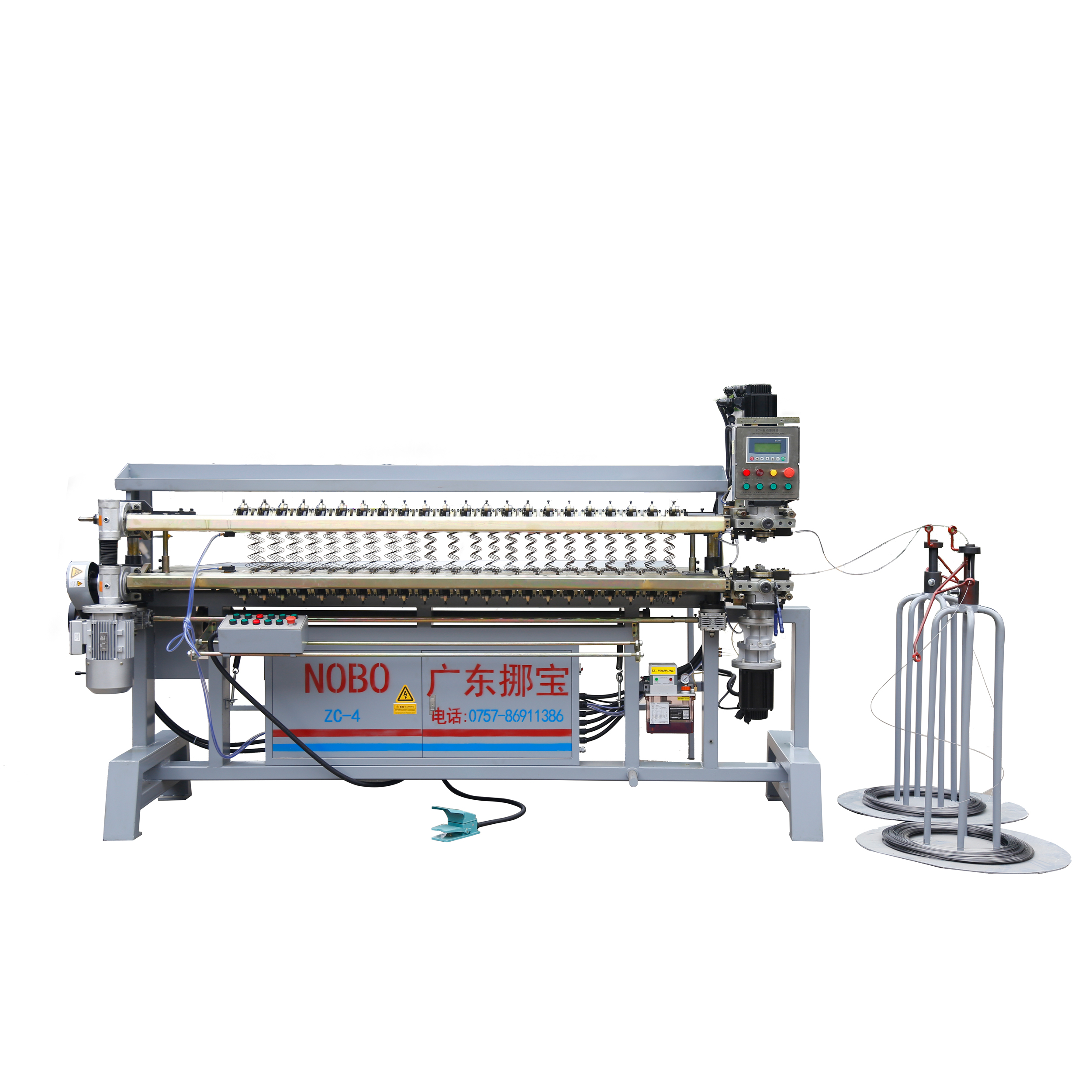

NOBO-ZC-4 is the specialized assembly equipment of spring bed nets and seat which needs only one person to put on the expected spring so that can achieve up and down at the same time network series.

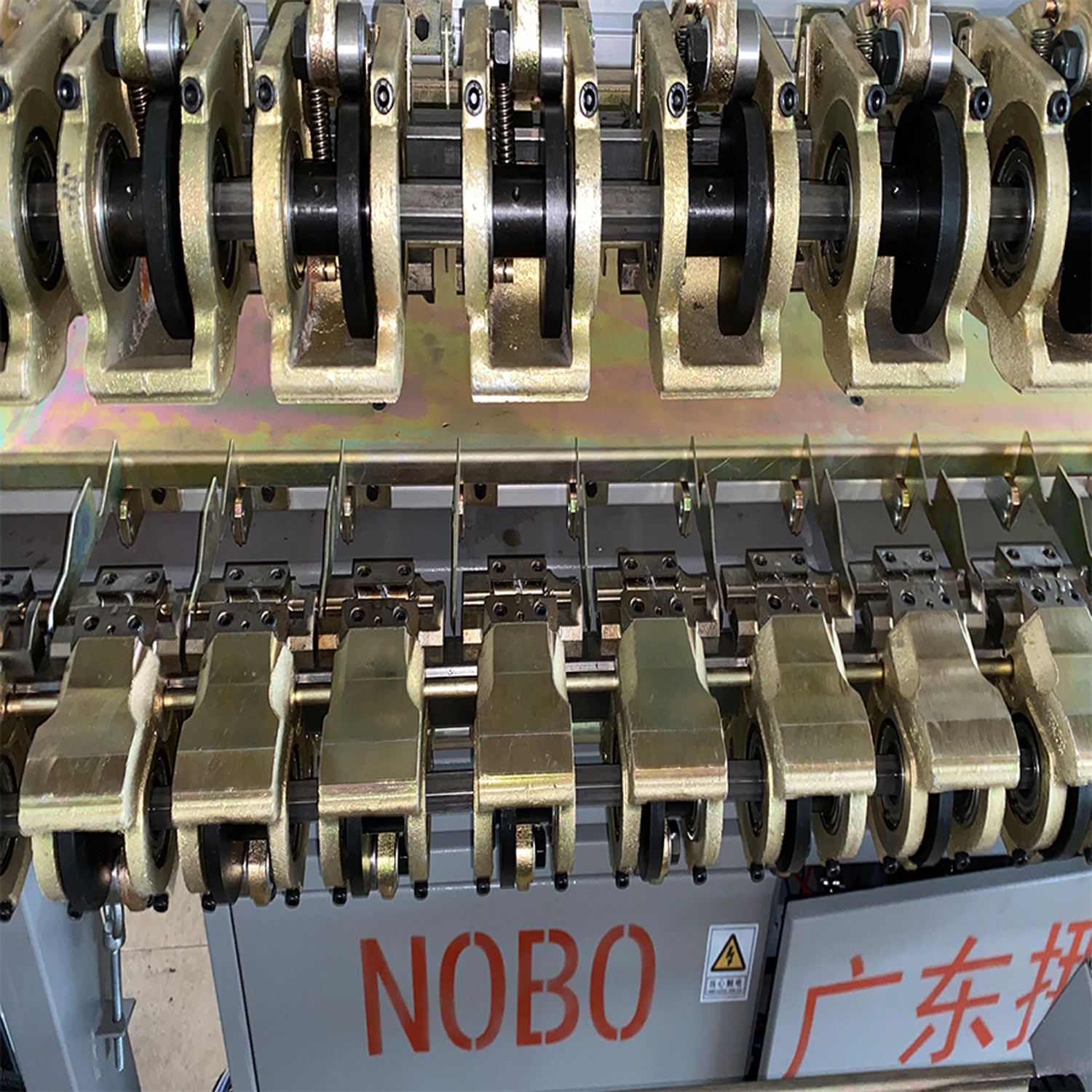

1 The machine use the automatic clamping device shutting up, up and down to achieve synchronization spring schedule string network.
2.If string is in place so it can automatically to cut wire spring clamp shut, expected to push forward bed nets automatically, shut down automatically if happening encountered failures and beep alarm
3. The size Bed nets can be adjusted. The height can be a free take-off and landing. The computer will automatically record the number of sheets and set rows
4.It has the ability of beautiful string of net, relatively tight string net, fast speed to time-saving, high efficient and to reduce labor intensity.
5. Use line with servo motor. are free to set the width.
Technical data:
Work Efficiency:
50-80 units/8 hours
Maximum width of the bed nets:
2000mm(option2000mm)
Adaption bed nets high:
80-180mm
Spring wire diameter:
2.0-2.4mm
String of spring steel wire diameter:
1.3-1.6mm
The total electric power:
4.5KW
Weight of machines:
950kg
Electrical source:
3 phase 380V/50HZ
Figure size:
length 3150 x width1730 x high1810mm
Applies to spring-caliber:
58 Fixture Series 55-56mm
68 Fixture Series 65-70mm
78 Fixture Series 65-73mm
88 Fixture Series75-82mm
98 Fixture Series 82-90mm
NOBO MATTRESS MACHINERY is established in foshan since 2007 ,we are professionally manufacturing the mattress machinery for China and oversea market in the past decade ,after years growing , we are becoming one of the leading high tech company in the mattress industry.
Mattress Spring Machine Workshop 1
Production and assembly of mattress spring equipment and automatic mattress spring bed net production line
Mattress Spring Machine Workshop 2
In good order Mattress spring equipment for assembly is being produced
Mattress Spring Machine Workshop 3
In good order Mattress spring equipment for assembly is being produced
Pocket Spring Machine Workshop
It is mainly used for the production and assembly of mattress pocket spring bed net production line
Mattress Spring Assembling Machine Workshop 1
It is mainly used for the production and assembly of Conjoined Coiling Machine.
Mattress Spring Assembling Machine Workshop 2
It is mainly used for the production and assembly of Mattress Spring Assembling Machine.
CNC machining workshop
Most of the parts of the mattress machine are processed through this workshop before entering the assembly link
Mattress Machine Parts Warehouse 1
Mattress machine parts storage warehouse, the production of good machines will be stored in this warehouse
Mattress Machine Parts Warehouse 2
Mattress machine parts storage warehouse, the production of good machines will be stored in this warehouse
Office Hall On The Second Floor
On the second floor of the factory, there are various offices, reception rooms, accessories sales office and innovation research and development office
Office corridor on the second floor of the factory
On the second floor of the factory, there are various offices, reception rooms, accessories sales office and innovation research and development office
Innovation and R&D Office
The main function is to develop new (innovative) mattress equipment products and optimize the technical support of existing mattress equipment products under the leadership of the senior team according to the development strategy of the factory.
Best Service:
1.Pre-sale Service
Good idea
Customer provides the mattress factory area and daily output, and we help to work out the plan
Developed & Produced
Carry out R&D and production assembly according to the mattress production line plan
Machine details and freight charges We will make a professional report, which includes the detailed parameters of the machine, the quotation and the approximate amount of freight, which will be changed according to the customer's demand.
Machine advantages and comparison We will provide machine pictures and videos, you can watch the machine operation through video chat at any time, so that customers can better observe. We will inform customers of the advantages of our machines and the comparison with peers, so that customers can make better choices, rather than blindly promote.
2.On-purchase Service
Machine progress and report We can report the machine production progress for customers at any time, take photos and video, and also directly video chat.
Technical support and training The sales service team will provide customers with technical support and training. Whether it is the installation, commissioning or daily use of the product, the sales service team will respond in time and provide solutions. At the same time, the in-sales service team will also provide relevant training for customers to help them better use and maintain the products.
3.After-sales Service
Video of machine spring parameters
When the machine is ready to adjust the parameters, we will shoot a video and send it to the customer with subtitles. We will also send the machine instructions.
The equipment or production line will be shipped after customer inspection and satisfaction.24H Online Service.
4.CE
Mattress Spring Machine,Mattress Spring Assembling Machine
Mattress Spring Bed Net Production Line and so on.
